  11. TERMI-BLOK PCB MOUNT 4P

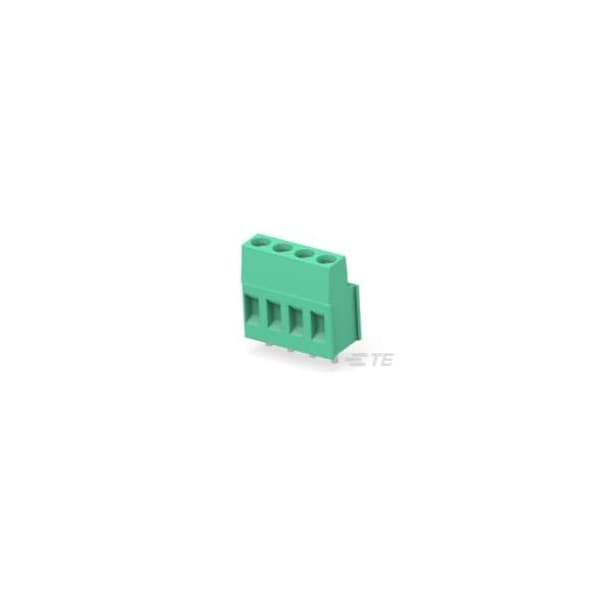

Te Connectivity TERMI-BLOK PCB MOUNT 4P 282856-4 - main

TERMI-BLOK PCB MOUNT 4P

  • Mfr # 282856-4

  • Zoro # G100929987

product price: $1.95
/ea
Sold in multiples of 45 for $87.75

Key Features

Voltage
300 VAC
Connector & Contact Terminates To
Printed Circuit Board
Block Type
Stacking w/interlock
Screw Flange
Without
Housing Material
PA 66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282856-4
Zoro #
G100929987
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.138 in

Details

Voltage
300 VAC
Connector & Contact Terminates To
Printed Circuit Board
Block Type
Stacking w/interlock
Screw Flange
Without
Housing Material
PA 66
Current Rating (Max)
24 A
Centerline (Pitch)
.197 in
Wire Range
30 to 12 AWG
Contact Mating Area Plating Material
Tin
Connector Style
Header
Connector Mounting Type
Board Mount
Screw Material
Brass
Wire Protection
With
Mounting Angle
Straight
Wire Entry Angle
Side
Screw Plating Material
Nickel
Housing Color
Green
Operating Temperature Range
-40 to 110°C
Screwless Terminal Block
No
Side Stackable
Yes
Number of Rows
1
Contact Current Rating (Max)
24 A
Number of Positions
4
Circuit Application
Power & Signal
Interlock
With
Contact Mount
Through Hole
Contact Base Material
Brass
Connector System
Wire-to-Board
