  15. 1NC/1NO Safety Interlock Switch Plunger IP 66, 67

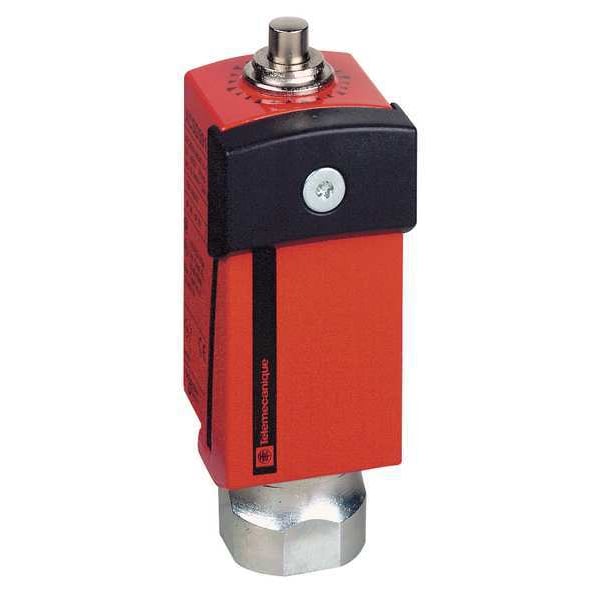

Telemecanique Sensors 1NC/1NO Safety Interlock Switch Plunger IP 66, 67 XCSD3710N12 - main

1NC/1NO Safety Interlock Switch Plunger IP 66, 67

  • Mfr # XCSD3710N12

  • Zoro # G3657604

product price: $144.99
/ea
Free Shipping & Returns

Key Features

Style
Metal Plunger
Series
XCSD
Actuator Length
0.39 in
AC Contact Rating
1.5 A @ 300 V
DC Contact Rating
0.1 A @ 300 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCSD3710N12
Zoro #
G3657604
UPC #
00338911024113
Country of Origin
France

Dimensions

Actuator Length
0.39 in
Height
3.51 in
Width
1.18 in
Depth
1.36 in
Conduit Size
1/2 in NPT
Manufacturer Warranty Length
18 mo
Overall Width
1.34 in
Overall Height
3.5 in
Overall Depth
1.38 in

Details

Item
Safety Interlock Switch
Style
Metal Plunger
Series
XCSD
AC Contact Rating
1.5 A @ 300 V
DC Contact Rating
0.1 A @ 300 V
Contact Form
1NC/1NC/1NO
Connection Type
1/2 in NPT Conduit
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508
Movement
Vertical
Body Material
Zamak
Actuator Style
Plunger
Operating Force
15 N
Head Material
Zamak
Description/Special Features
15 N Minimum Force for Tripping, Plastic Enclosure, Poditive Opening Contacts
Material
metal
Electrical Connection
1/2 in NPT Conduit
Features
Positive Opening Contacts
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Head Type
plunger head
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
15000000 cycles
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Circuitry Action
Slow Action
Resistance Properties
Shock Resistant, Vibration Resistant
Mechanical Operating Durability
15,000,000
Actuator Material
Metal
Cable Entry
1 entry tapped 1/2" NPT
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 || 4 kV IEC 60664
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
Type Of Approach
on end approach
Enclosure Material
Plastic
Product Or Component Type
safety limit switch
[Ithe] Conventional Enclosed Thermal Current
6A
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK06 EN 50102
Positive Opening
with NC contact
Minimum Force For Tripping
15 N
Number Of Poles
3
Contact Operation
slow-break, break before make
Positive Opening Minimum Force
45 N
Repeat Accuracy
0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Product Certifications
UL || CSA
Maximum Resistance Across Terminals
25 MOhm IEC 60255-7 category 3
Contacts Type And Composition
1 NC + 1 NC + 1 NO
Ip Degree Of Protection
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Short-Circuit Protection
6 A cartridge fuse gG (gl)
Design
compact
Ambient Air Temperature For Operation
-25-70°C
Protective Treatment
TC
Protection Technology
plastic protective cover, secured by 5-lobe socket head safety screw
Component Name
XCSD
Maximum Actuation Speed
0.5 m/s
Contact Code Designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Type Of Operator
metal end plunger
Electrical Shock Protection Class
class I NF C 20-030 || class I EN/IEC 61140
Minimum Actuation Speed
0.01 m/s
[Ui] Rated Insulation Voltage
300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14
Clamping Connection Capacity
1 x 0.34...2 x 0.75 mm²

Description

Safety Interlock Switch, Metal Plunger, Contact Form 1NC/1NC/1NO, Actuator Length 0.39 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 1.5 A @ 300 V, Series XCSD, DC Contact Rating 0.1 A @ 300 V, Height 3.51 in, Width 1.18 in, Depth 1.36 in, IP Rating IP66, IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak, Description/Special Features 15 N Minimum Force for Tripping, Plastic Enclosure, Poditive Opening Contacts
