  9. 2-1/2 MNPT DPST Alternator Tank Liquid Level Switch Close on Rise

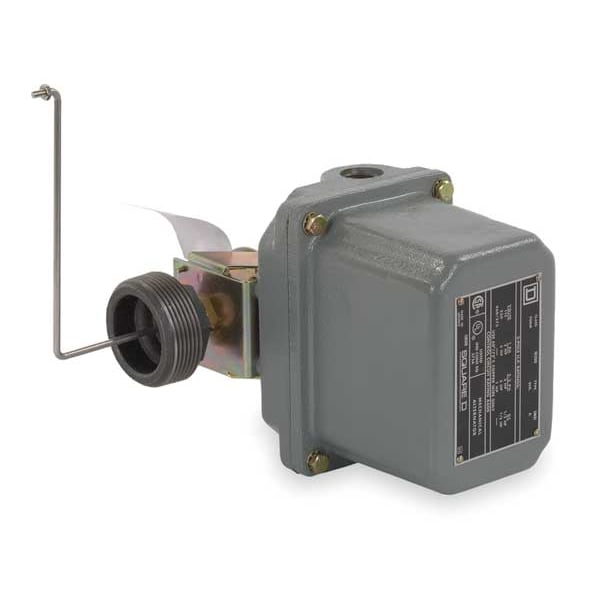

Telemecanique Sensors 2-1/2 MNPT DPST Alternator Tank Liquid Level Switch Close on Rise 9038CW31 - main

2-1/2 MNPT DPST Alternator Tank Liquid Level Switch Close on Rise

  • Mfr # 9038CW31

  • Zoro # G1240163

product price: $963.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
50 psi
Float Length
7 in
Stem Material
Stainless Steel
HP @ 3 Phase - 240V
5 hp
Includes
Rod and Float
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038CW31
Zoro #
G1240163
UPC #
785901064404
Country of Origin
Mexico

Dimensions

Float Length
7 in
Width
6.84 in
Conduit Size
2 3/4 in
Tank Connection Size
2-1/2 in MNPT
Overall Length
18.5 in
Height
5.94 in
Stem Length
4 in
Float Dia.
2.5 in
Float Diameter
2.5 in
Stem Thread Size
2 1/2 in MNPT
Manufacturer Warranty Length
18 mo
Overall Height
7.78 in
Overall Width
7.78 in

Details

Max. Pressure
50 psi
Item
Alternator Closed Liquid Level Switch
Stem Material
Stainless Steel
HP @ 3 Phase - 240V
5 hp
Includes
Rod and Float
Float Position
Right
Electrical Connections
Screw Clamp
Body Material
Aluminum
Float Rod Angle
90 Degrees
Mounting
Side
Float Switch Float Material
Stainless Steel
Operating Temp. Range
-22 Degrees to 220 Degrees F
Float Material
Stainless Steel
Contact Form
DPST-4NC
HP @ 1 Phase - 240V
3 hp
Switch Function
Close On Rise
Max. Current
600 A
Float Switch Contact Form
DPST
HP @ 1 Phase - 120V
2 hp
NEMA Rating
4
Max. Voltage
475 V
Float Travel
6 1/2 in
Standards
CE, CSA File LR25490, UL File E12158, UL 50, UL 508
Series
9038C
Product Type
Alternator Closed Liquid Level Switch
Voltage Rating - Maximum
575 V
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
220 Degrees F
Proof Pressure
50 psi
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Media Specific Gravity
0.85
Mounting Style
Closed Tank Vertical
Electrical Connection
Screw Clamp
NEMA Enclosure Rating
4

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 6 1/2 in, NEMA Rating 4, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 18.5 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4 in, Height 5.94 in, Width 6.84 in, Contact Form DPST-4NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp
