  11. Cordset, 16.4 ft., Gray, 250VAC/300VDC

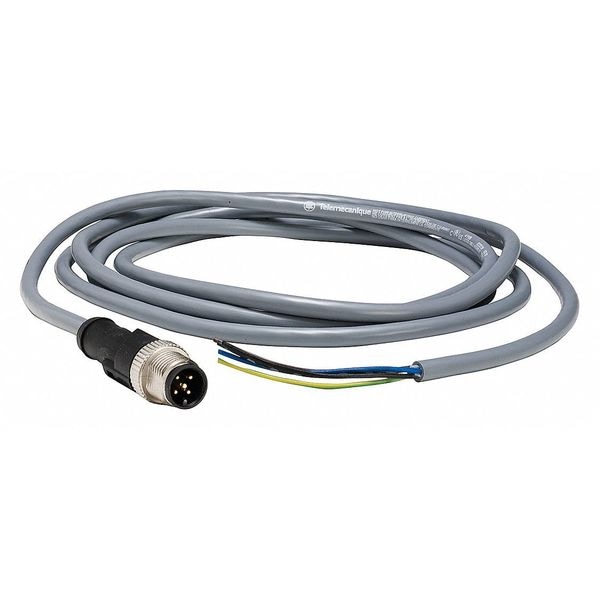

Telemecanique Sensors Cordset, 16.4 ft., Gray, 250VAC/300VDC XZCPV1564L5 - main

Cordset, 16.4 ft., Gray, 250VAC/300VDC

  • Mfr # XZCPV1564L5

  • Zoro # G6580366

product price: $68.19
/ea

Key Features

End 1 Number of Pins
5
Cable Length
5 m
Wire Size
18 AWG
IP Rating
IP65, IP67
Number of Conductors
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCPV1564L5
Zoro #
G6580366
UPC #
785901951704
Country of Origin
Poland

Dimensions

Cable Length
5 m
Wire Size
18 AWG
Cable Outer Diameter
5.2 mm

Details

Item
Cordset
End 1 Number of Pins
5
IP Rating
IP65, IP67
Number of Conductors
5
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping; Mercury Free
End 1 Gender and Plug End
Male Straight
Max. Voltage
250VAC/300VDC
End 1 Connection Type
M12
End 1 Thread
M12
End 2 Gender and Plug End
Bare Wire
Temp. Range
-13 Degrees to 176 Degrees F
End 2 Connection Type
Bare Wire
Max. Amps
3 A
Standards
CSA Certified, IEC, UL Listed
End 1 Keyway
Single
Color
Blue, Brown, Black, Yellow/Green, Black/White
End 1 Number of Keyways
1
Maximum Operating Temperature
176 Degrees F
Cable Jacket Color
Gray
End 1 Gender
Male
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Straight
Number of Wires
5
Cable Jacket Material
PVC
Collar Material
metal
Ambient Air Temperature For Storage
-25-80°C
Contact Resistance
5000µOhm
Product Certifications
cULus
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Electrical Connection
straight male connector M12, 5 pins
Status Led
without
Accessory / Separate Part Category
cabling accessory
Line Rated Current
3A
Minimum Insulating Resistance
1 GΩ
Cable Composition
5 x 0.25 mm²
Accessory / Separate Part Type
pre-wired connectors
Series Name
general purpose
Cable Connector Fixing
screw-on
Ambient Air Temperature For Operation
-25-80°C static
Product Type
Single Ended

Description

Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed

Restrictions

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
