  9. DPST Alternator Liquid Level Switch Close on Rise 600VAC

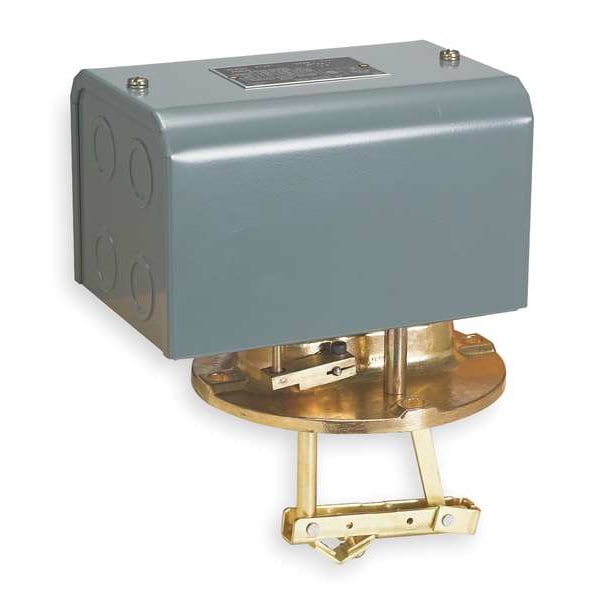

Telemecanique Sensors DPST Alternator Liquid Level Switch Close on Rise 600VAC 9038DG7 - main

DPST Alternator Liquid Level Switch Close on Rise 600VAC

  • Mfr # 9038DG7

  • Zoro # G0299056

product price: $599.99
/ea
Free Shipping & Returns

Key Features

Voltage
600VAC
Max. Pressure
50 psi
Amps
10
Tank Connection Size
5-1/8 in
Float Rod Angle
Horizontal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038DG7
Zoro #
G0299056
UPC #
785901508069
Country of Origin
Mexico

Dimensions

Tank Connection Size
5-1/8 in
Width
6.5 in
Height
9.82 in
Conduit Size
1/2 in to 3/4 in
Overall Length
2.63 in
Overall Height
4.47 in
Stem Thread Size
5 1/8 in
Overall Width
6.84 in
Manufacturer Warranty Length
18 mo

Details

Voltage
600VAC
Max. Pressure
50 psi
Item
Alternator Closed Liquid Level Switch
Amps
10
Float Rod Angle
Horizontal
Float Position
Below
Max. Voltage
600 V
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
Operating Temp. Range
-22 Degrees to 220 Degrees F
Mounting
Vertical Open Tank
HP @ 3 Phase - 240V
5 hp
Contact Form
DPST-4NC
Float Travel
8 3/4 in
Body Material
Steel
Float Switch Contact Form
DPST
Electrical Connections
Screw Clamp
Max. Current
600 A
HP @ 1 Phase - 240V
3 hp
NEMA Rating
1
Switch Function
Close On Rise
HP @ 1 Phase - 120V
2 hp
Series
9038D
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Media Specific Gravity
0.85
Horsepower @ Three Phase - 240V AC
5 hp
Current Rating - Maximum
600 A
Mounting Style
Closed Tank Vertical
NEMA Enclosure Rating
1
Voltage Rating - Maximum
575 V
Operating Temperature - Minimum
-22 Degrees F
Proof Pressure
50 psi
Product Type
Alternator Closed Liquid Level Switch
Electrical Connection
Screw Clamp
Operating Temperature - Maximum
220 Degrees F

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 8 3/4 in, NEMA Rating 1, Tank Connection Size 5-1/8 in, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 2.63 in, Height 9.82 in, Width 6.5 in, Contact Form DPST-4NC, Max. Current 600 A, Max. Voltage 600 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Steel, Float Position Below
