  8. Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

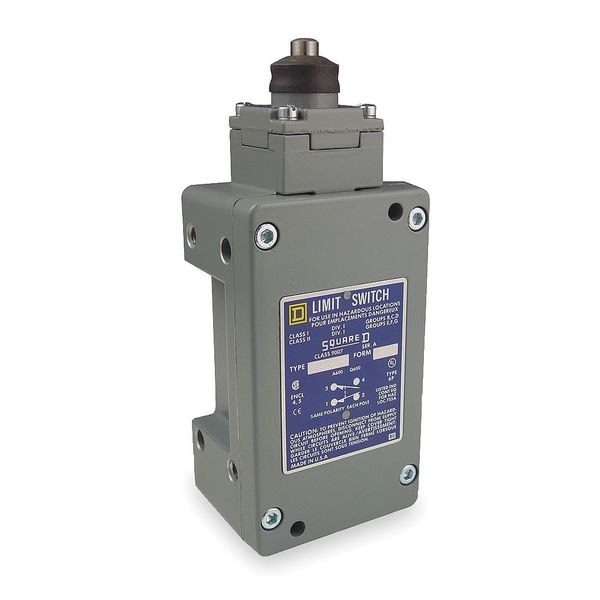

Telemecanique Sensors Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top 9007CR53E - main

Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007CR53E

  • Zoro # G0944273

product price:  $407.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007CR53E
Zoro #
G0944273
UPC #
785901763383
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
2.08 in
Body Height - Limit Switch
4.25 in
Width
2.72"
Actuator Length
0.48"
Actuator Length - Limit Switch
0.48 in
Body Width - Limit Switch
2.72 in
Height
6.10"
Depth
2.08"
Manufacturer Warranty Length
18 mo
Body Width
2.72 in
Mounting Hole Diameter
0.2 in
Overall Width
2.72 in
Body Height
4.25 in
Body Depth
2.08 in
Overall Height
6.58 in
Overall Depth
2.08 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Electrical Connection
Screw Clamp Terminals
Stem Thread - Limit Switch
No Stem
Wiring Entry
1/2 in NPT
Operating Temp. Range
0 Degrees to 185 Degrees F
Boot Sealed Actuator - Limit Switch
No
NEMA Rating
1, 12, 13, 2, 4, 6, 6P, 7, 9
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
IP Rating
IP67
Amps
10
Actuator Location (Limit Switch)
Top
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Series
9007CR
Body Style (Limit Switch)
Standard
Actuator Style (Limit Switch)
Plunger
AC Contact Rating
10 A @ 600 V
Certification
UL Class I Groups B, C, D and Class II Groups E, F, G
Standards
CSA, UL Listed
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
Hazardous Location Limit Switch
Actuator Location
Top
Actuator Style
Plunger
Movement
Vertical
Basic Actuator Style (Limit Switch)
Plunger
Travel
0.25 in
Body Material
Aluminum
Voltage Rating
600VAC/DC
Contact Form
1NO/1NC
Contact Form - Limit Switch
1NC/1NO
Operating Force
3.0 lb
Mounting Hole - Limit Switch
(2) 0.20 in dia
DC Contact Rating
10 A @ 600 V
Contact Material
silver contacts
Head Material
zinc
Special Features
vertical approach, 1 direction
Actuation Type
on end
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Contact Action
snap action
Head Type
plunger head
Electrical Durability
1000000 cycles
Weight
2.5 lb(US)
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Short Circuit Protection
10 A CC non-time delay
Operating Force - Maximum
3 lbf
Resistance Properties
Shock Resistant, Vibration Resistant
Directional Movement
Linear
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
60 mm
Pretravel
0.08 in
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Horizontal Center to Center Distance
30 mm
Boot Sealed Actuator
No Boot Included
Number Of Poles
1
Type Of Operator
stainless steel spring return plunger

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.48 in, Body Height - Limit Switch 4.25 in, Body Width - Limit Switch 2.72 in, Body Depth - Limit Switch 2.08 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, 7, 9
