  8. Hazardous Location Limit Switch, Wobble Stick, 2NC/2NO, 10A at 600V AC, Actuator Location: Side

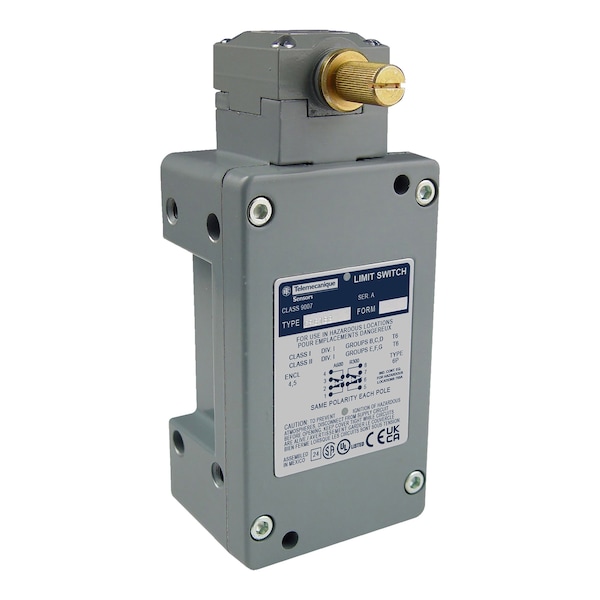

Telemecanique Sensors Hazardous Location Limit Switch, Wobble Stick, 2NC/2NO, 10A at 600V AC, Actuator Location: Side 9007CR61B2 - main

Hazardous Location Limit Switch, Wobble Stick, 2NC/2NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # 9007CR61B2

  • Zoro # G1069817

product price:  $422.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007CR61B2
Zoro #
G1069817
UPC #
785901783695
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
2.08 in
Width
2.72"
Depth
2.08"
Body Width - Limit Switch
2.72 in
Height
6.10"
Body Height - Limit Switch
4.25 in
Mounting Hole Diameter
0.2 in
Body Width
2.72 in
Overall Depth
2.79 in
Overall Height
6.1 in
Overall Width
2.72 in
Body Height
4.25 in
Manufacturer Warranty Length
18 mo
Body Depth
2.08 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
DC Contact Rating
10 A @ 600 V
Stem Thread - Limit Switch
No Stem
Series
9007CR
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Actuator Style (Limit Switch)
Wobble Stick
Electrical Connection
Screw Clamp Terminals
Actuator Location
Side
Limit Switch Style
Hazardous Location Limit Switch
Movement
CCW, CW
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Boot Sealed Actuator (Limit Switch)
No
Standards
C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Travel
Total Travel 90 Degrees
Basic Actuator Style (Limit Switch)
Wobble Stick
Contact Form - Limit Switch
2NC/2NO
Certification
UL Class I Groups B, C, D and Class II Groups E, F, G
IP Rating
IP67
Wiring Entry
1/2 in NPT
Amps
10
Operating Force
4.0 in-lb
NEMA Rating
1, 12, 13, 2, 4, 6, 6P, 7, 9
Contact Form
2NO/2NC
Mounting Hole - Limit Switch
(2) 0.20 in dia
Voltage Rating
600VAC/DC
AC Contact Rating
10 A @ 600 V
Boot Sealed Actuator - Limit Switch
No
Body Material
Aluminum
Operating Temp. Range
-20 Degrees to 185 Degrees F
Actuator Location (Limit Switch)
Side
Body Style (Limit Switch)
Standard
Actuator Style
Rotary Head, No Lever
Special Features
lateral approach, 1 or 2 programmable direction
Contact Material
silver contacts
Head Material
zinc
Contact Action
snap action
Head Type
rotary head
Short Circuit Protection
10 A CC non-time delay
Actuation Type
CW and CCW || from left and right
Min. Actuation Velocity Horizontal
90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
2.5 lb(US)
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Electrical Durability
1000000 cycles
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
185 Degrees F
Includes Actuator
No Actuator Included
Directional Movement
CCW/CW
Mounting Style
Surface
Total Travel
90 Degrees
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Operating Temperature - Minimum
-20 Degrees F
Operating Torque - Maximum
4 in-lb
Mounting Hole Horizontal Center to Center Distance
30 mm
Pretravel
10 Degrees
Type Of Operator
zinc spring return without operating lever 9007C lever
Number Of Poles
2

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Body Height - Limit Switch 4.25 in, Body Width - Limit Switch 2.72 in, Body Depth - Limit Switch 2.08 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, 7, 9, Mounting - Limit Switch Surface
