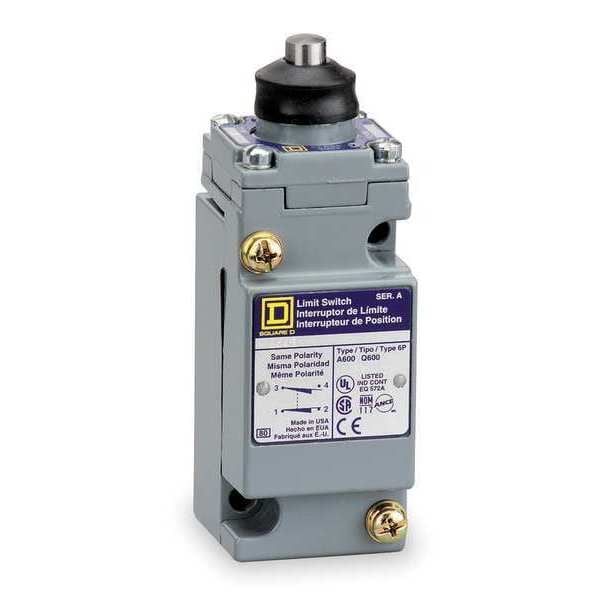

Telemecanique Sensors Heavy Duty Limit Switch, Adjustable Push, Rod, 2NC/2NO, 10A at 600V AC, Actuator Location: Top 9007C62ED - main

Heavy Duty Limit Switch, Adjustable Push, Rod, 2NC/2NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C62ED

  • Zoro # G0822735

product price:  $316.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Adjustable Push, Rod
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007C62ED
Zoro #
G0822735
UPC #
785901540564
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
2.5 in
Body Width - Limit Switch
0.83 in
Height
4.02"
Width
1.55"
Actuator Length
1.01"
Body Depth - Limit Switch
1.14 in
Actuator Length - Limit Switch
1.01 in
Depth
1.79"
Mounting Hole Diameter
0.2 in
Body Height
2.5 in
Body Width
0.83 in
Body Depth
1.14 in
Overall Depth
1.79 in
Overall Height
5.22 in
Overall Width
1.55 in
Manufacturer Warranty Length
18 mo

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Adjustable Push, Rod
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Amps
10
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
IP Rating
67
DC Contact Rating
10A at 600V
Basic Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Boot Sealed Actuator - Limit Switch
No
Operating Force
3.0 lb
Stem Thread - Limit Switch
No Stem
AC Contact Rating
10A at 600V
Body Material
Zinc
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Terminals
Actuator Style (Limit Switch)
Rod, Adjustable Push
Limit Switch Style
Heavy Duty Limit Switch
Travel
0.25 in
Actuator Location (Limit Switch)
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
Contact Form - Limit Switch
2NC/2NO
Standards
CE, CSA, UL
Actuator Location
Top
Voltage Rating
600VAC/DC
Contact Form
2NC/2NO
Boot Sealed Actuator (Limit Switch)
No
Operating Temp. Range
0 Degrees to 185 Degrees F
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Series
9007C
Movement
Vertical
Actuator Style
Plunger
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Contact Material
silver contacts
Head Material
zinc
Special Features
vertical approach, 1 direction
Contact Action
snap action
Short Circuit Protection
10 A CC non-time delay
Head Type
plunger head
Mechanical Durability
10000000 cycles
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Actuation Type
on end
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Electrical Durability
1000000 cycles
Body Configuration
Plug-In
Number of Mounting Holes
2
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
30 mm
Boot Sealed Actuator
No Boot Included
Operating Force - Maximum
3 lbf
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Minimum
-20 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Style
Surface
Pretravel
0.08 in
Number Of Poles
2
Type Of Operator
stainless steel spring return plunger adjustable)

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Adjustable Push, Rod, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Actuator Length - Limit Switch 1.01 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
