  8. Heavy Duty Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

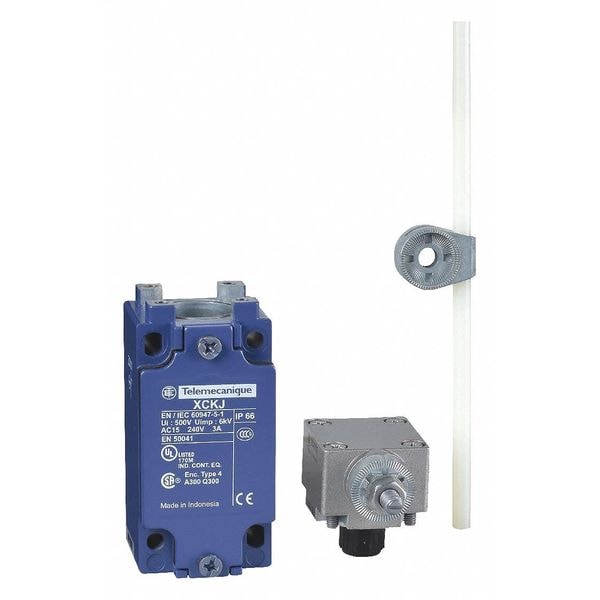

Telemecanique Sensors Heavy Duty Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKJ10559H7 - main

Heavy Duty Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKJ10559H7

  • Zoro # G0082529

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ10559H7
Zoro #
G0082529
UPC #
785901871682
Country of Origin
France

Dimensions

Actuator Length
8.35"
Body Height - Limit Switch
4.01 in
Depth
1.73"
Width
1.57"
Actuator Length - Limit Switch
8.35 in
Height
3.94"
Arm Width
0.24 in
Body Width - Limit Switch
1.57 in
Body Depth - Limit Switch
2.36 in
Body Width
1.57 in
Body Height
4.01 in
Overall Depth
1.73 in
Body Depth
1.89 in
Overall Height
3.03 in
Mounting Hole Diameter
0.21 in
Manufacturer Warranty Length
18 mo
Overall Width
1.57 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Movement
CCW, CW
Actuator Location
Side
Body Style (Limit Switch)
Standard
Series
XCKJ
Boot Sealed Actuator - Limit Switch
No
Body Material
Zamak
IP Rating
IP66
Contact Form
1NO/1NC
Actuator Style (Limit Switch)
Rotary, Adjustable Rod
Operating Force
2.21 in-lb
Standards
CCC, CENELEC EN 50041, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Limit Switch Style
Heavy Duty Limit Switch
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
1NC/1NO
Boot Sealed Actuator (Limit Switch)
No
NEMA Rating
1, 12, 13, 2, 4
Travel
Total Travel 90 Degrees
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Amps
10
Operating Temp. Range
-13 Degrees to 158 Degrees F
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole - Limit Switch
(4) 0.21 in dia
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Clamp Terminals
Actuator Location (Limit Switch)
Side
Actuator Style
Rod
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Arm Material
Thermoplastic
Voltage Rating
240VAC/DC
DC Contact Rating
10 A @ 240 V
Special Features
lateral approach, 1 or 2 programmable direction
Certification
UL || CSA || CCC
AC Contact Rating
10 A @ 240 V
Head Material
zamak
Min. Actuation Velocity Horizontal
1.5 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Weight
0.485 kg
Head Type
rotary head
Actuation Type
by any moving part
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
30000000 cycles
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Style
Surface
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Total Travel
90 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Hole Horizontal Center to Center Distance
30 mm
Number of Mounting Holes
4
Directional Movement
CCW/CW
Operating Torque - Maximum
2.21 in-lb
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Type Of Operator
spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Rod, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 8.35 in, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4
