  8. Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

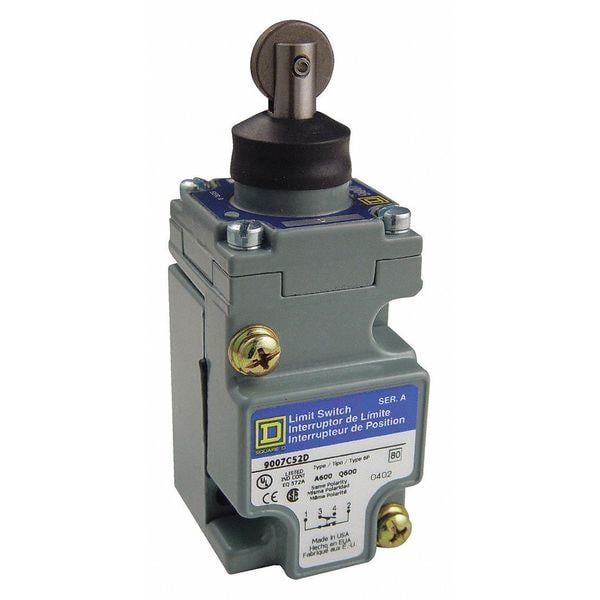

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top 9007C52D - main

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C52D

  • Zoro # G0757163

product price:  $216.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007C52D
Zoro #
G0757163
UPC #
785901783374
Country of Origin
Mexico

Dimensions

Height
3.14"
Roller Width
0.12 in
Roller Dia.
0.63 in
Body Depth - Limit Switch
1.14 in
Body Height - Limit Switch
2.5 in
Depth
1.79"
Body Width - Limit Switch
0.83 in
Width
1.55"
Actuator Length - Limit Switch
0.95 in
Actuator Length
0.95"
Roller Diameter
0.63 in
Overall Height
3.78 in
Body Height
2.5 in
Body Width
0.83 in
Mounting Hole Diameter
0.2 in
Overall Depth
1.79 in
Manufacturer Warranty Length
18 mo
Overall Width
1.55 in
Body Depth
1.14 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
Screw Clamp Terminals
Travel
0.25 in
Basic Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
600VAC/DC
AC Contact Rating
10 A @ 600 V
Contact Form
1NO/1NC
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Contact Form - Limit Switch
1NC/1NO
Wiring Entry
1/2 in NPT
IP Rating
IP67
Operating Temp. Range
0 Degrees to 185 Degrees F
Mounting Hole - Limit Switch
(2) 0.20 in dia
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location
Top
DC Contact Rating
10 A @ 600 V
Roller Material
Steel
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Material
Zinc
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Actuator Location (Limit Switch)
Top
Actuator Style
Roller Plunger
Stem Thread - Limit Switch
No Stem
Series
9007C
Movement
Horizontal
Boot Sealed Actuator - Limit Switch
No
Amps
10
Standards
CSA, UL Listed
Actuator Style (Limit Switch)
Plunger, Roller
Operating Force
4.0 in-lb
Body Style (Limit Switch)
Miniature
Head Material
zinc
Contact Material
silver contacts
Special Features
lateral approach, 2 directions
Short Circuit Protection
10 A CC non-time delay
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Head Type
plunger head
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Mechanical Durability
10000000 cycles
Electrical Durability
1000000 cycles
Actuation Type
by 30° cam
Boot Sealed Actuator
No Boot Included
Pretravel
0.08 in
Number of Mounting Holes
2
Directional Movement
Linear
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
3 lbf
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Hole Horizontal Center to Center Distance
30 mm
Body Configuration
Plug-In
Operating Temperature - Minimum
-20 Degrees F
Type Of Operator
steel spring return roller plunger
Number Of Poles
1

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.95 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
