  8. Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

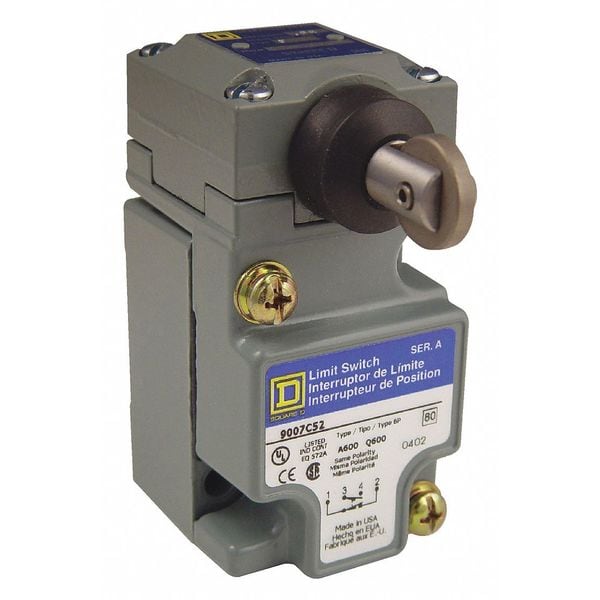

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top 9007C52F - main
Shop TELEMECANIQUE SENSORS

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C52F

  • Zoro # G0938332

product price:  $249.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007C52F
Zoro #
G0938332
UPC #
785901783442
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
1.14 in
Actuator Length
1.08"
Roller Dia.
0.63 in
Body Width - Limit Switch
0.83 in
Actuator Length - Limit Switch
1.08 in
Roller Width
0.12 in
Depth
1.79"
Width
1.55"
Height
3.14"
Body Height - Limit Switch
2.5 in
Roller Diameter
0.63 in
Overall Width
1.55 in
Overall Height
3.14 in
Body Height
2.5 in
Body Width
0.83 in
Overall Depth
2.63 in
Body Depth
1.14 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
18 mo

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Operating Temp. Range
0 Degrees to 185 Degrees F
Body Style (Limit Switch)
Miniature
Wiring Entry
1/2 in NPT
Contact Form
1NO/1NC
IP Rating
IP67
Standards
C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Basic Actuator Style (Limit Switch)
Plunger
Roller Material
Steel
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Contact Form - Limit Switch
1NC/1NO
Limit Switch Style
Heavy Duty Limit Switch
Movement
Vertical
Series
9007C
Actuator Location (Limit Switch)
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location
Side
Voltage Rating
600VAC/DC
Actuator Style
Roller Plunger
Boot Sealed Actuator (Limit Switch)
No
DC Contact Rating
10 A @ 600 V
Travel
0.25 in
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Clamp Terminals
Body Material
Zinc
Actuator Style (Limit Switch)
Plunger, Roller
Operating Force
4.0 in-lb
Amps
10
AC Contact Rating
10 A @ 600 V
Contact Material
silver contacts
Special Features
vertical approach, 2 directions
Head Material
zinc
Short Circuit Protection
10 A CC non-time delay
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Weight
1.25 lb(US)
Contact Action
snap action
Actuation Type
by 30° cam
Head Type
plunger head
Electrical Durability
1000000 cycles
Operating Temperature - Maximum
185 Degrees F
Pretravel
0.08 in
Number of Mounting Holes
2
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Minimum
-20 Degrees F
Body Configuration
Plug-In
Operating Force - Maximum
4 lbf
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
30 mm
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
Mounting Hole Vertical Center to Center Distance
60 mm
Type Of Operator
steel spring return side roller plunger with vertical roller vertical convertible to horizontal)
Number Of Poles
1

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.08 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
