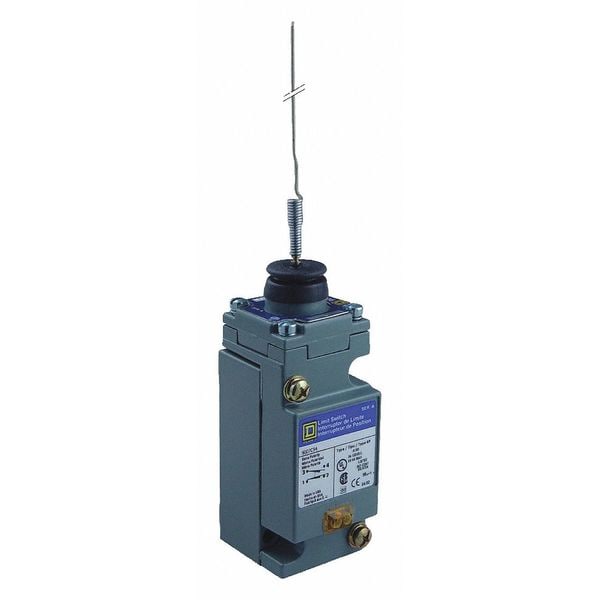

Telemecanique Sensors Heavy Duty Limit Switch, Wobble Stick, 2NC/2NO, 10A at 600V AC, Actuator Location: Top 9007C62L - main

Heavy Duty Limit Switch, Wobble Stick, 2NC/2NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C62L

  • Zoro # G0574917

product price:  $212.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007C62L
Zoro #
G0574917
UPC #
785901852049
Country of Origin
Mexico

Dimensions

Width
1.55"
Depth
1.79"
Body Width - Limit Switch
0.83 in
Body Depth - Limit Switch
1.14 in
Height
4.02"
Actuator Length - Limit Switch
5.05 in
Actuator Length
5.05"
Body Height - Limit Switch
2.5 in
Overall Width
1.55 in
Mounting Hole Diameter
0.2 in
Body Width
0.83 in
Overall Height
9.07 in
Overall Depth
1.79 in
Body Depth
1.14 in
Manufacturer Warranty Length
18 mo
Body Height
2.5 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
Screw Clamp Terminals
Actuator Location (Limit Switch)
Top
Limit Switch Style
Heavy Duty Limit Switch
Actuator Style (Limit Switch)
Wobble Stick
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Movement
Any Direction
Operating Temp. Range
0 Degrees to 185 Degrees F
Standards
CSA C22.2 No.14, UL 508
Body Style (Limit Switch)
Miniature
Travel
Total Travel 90 Degrees
Operating Force
0.44 in-lb
Basic Actuator Style (Limit Switch)
Wobble Stick
Body Material
Zinc
Boot Sealed Actuator (Limit Switch)
No
Series
9007C
DC Contact Rating
10 A @ 600 V
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Actuator Style
Cat Whisker
Actuator Location
Top
IP Rating
IP67
Contact Form
2NO/2NC
Amps
10
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
AC Contact Rating
10 A @ 600 V
Mounting Hole - Limit Switch
(2) 0.20 in dia
Voltage Rating
600VAC/DC
Wiring Entry
1/2 in NPT
Contact Form - Limit Switch
2NC/2NO
Special Features
multi-directional approach, multi-directional approach
Contact Material
silver contacts
Head Material
zinc
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Mechanical Durability
10000000 cycles
Weight
1.25 lb(US)
Electrical Durability
1000000 cycles
Short Circuit Protection
10 A CC non-time delay
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Actuation Type
by any moving part
Head Type
multi-directional head
Resistance Properties
Shock Resistant, Vibration Resistant
Total Travel
90 Degrees
Body Configuration
Plug-In
Pretravel
20 Degrees
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Torque - Maximum
0.44 in-lb
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Minimum
-20 Degrees F
Number of Mounting Holes
2
Directional Movement
Omnidirectional
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
185 Degrees F
Number Of Poles
2
Type Of Operator
steel spring return wire whisker

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Actuator Length - Limit Switch 5.05 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
