  11. Inductive Proximity Sensor, PBT, 3 Wires

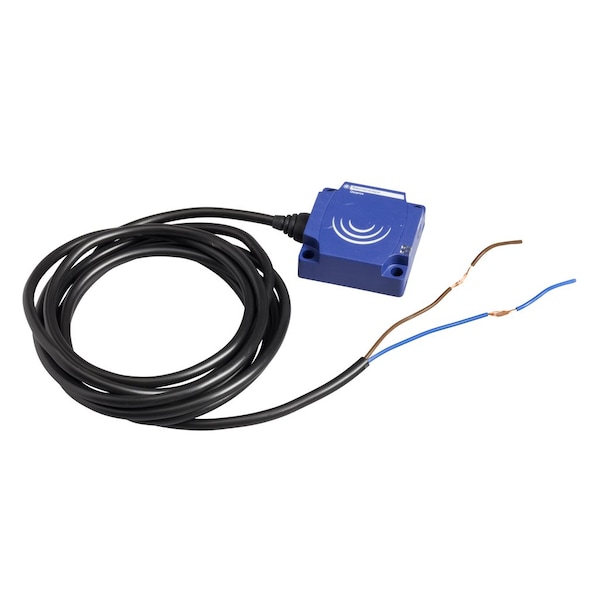

Telemecanique Sensors Inductive Proximity Sensor, PBT, 3 Wires XS8C1A1PBL2 - main

Inductive Proximity Sensor, PBT, 3 Wires

  • Mfr # XS8C1A1PBL2

  • Zoro # G3977203

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
40 mm
Width
40 mm
Depth
15 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8C1A1PBL2
Zoro #
G3977203
UPC #
-
Country of Origin
France

Dimensions

Length
40 mm
Width
40 mm
Depth
15 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Standards
CSA; Ecolab; UL; CE Marked
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face
IP Rating
IP68
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Differential Travel
1...15% of Sr
Maximum Delay Response
0.3 ms
Maximum Delay Recovery
0.8 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Series
XS8
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
10 ms
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Output Circuit Type
DC-Type, PNP
Sensing Distance - Maximum
25 mm
Output Circuit Number of Wires
3
Output Circuit Contact Form
NC
Style
Inductive
Body Material
PBT

Description

Inductive sensor XS8 40x40x15 - PBT - Sn
