Electrical Connection
Screw Clamp Terminals
AC Contact Rating
0.75 A @ 240 V
DC Contact Rating
0.1 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Body Configuration
Non Plug-In
Indicating Light
No Indicating Light Included
Number of Mounting Holes
2
Compatible with Series
XCKP
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
NEMA Enclosure Rating
1, 12, 4
Mounting Hole Horizontal Center to Center Distance
21 mm
Contact Operation
snap action
Contact Code Designation
R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A
Associated Connection Component
ZCPEP20 || ZCPEG11 || ZCPEP16 || ZCPEG13 || ZCPEN12 || ZCPEF12
Associated Head
ZCE07 || ZCE08 || ZCE27 || ZCE63 || ZCEH2 || ZCE28 || ZCE11 || ZCE24 || ZCE13 || ZCE02 || ZCE10 || ZCE66 || ZCE05 || ZCE65 || ZCE29 || ZCE14 || ZCE62 || ZCE09 || ZCEH0 || ZCE21 || ZCE67 || ZCE06 || ZCE01 || ZCE64
Contacts Insulation Form
Zb
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage
300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Short-Circuit Protection
6 A cartridge fuse gG
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type

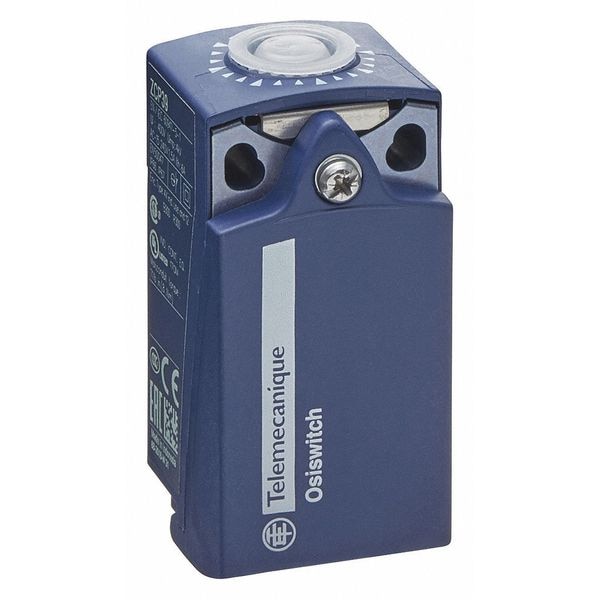

limit switch body
Minimum Actuation Speed
0.01 m/s
Series Name
Standard compact
Contacts Material
silver plated contacts
Product Compatibility
XCKP
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
2 NC + 1 NO
