  8. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

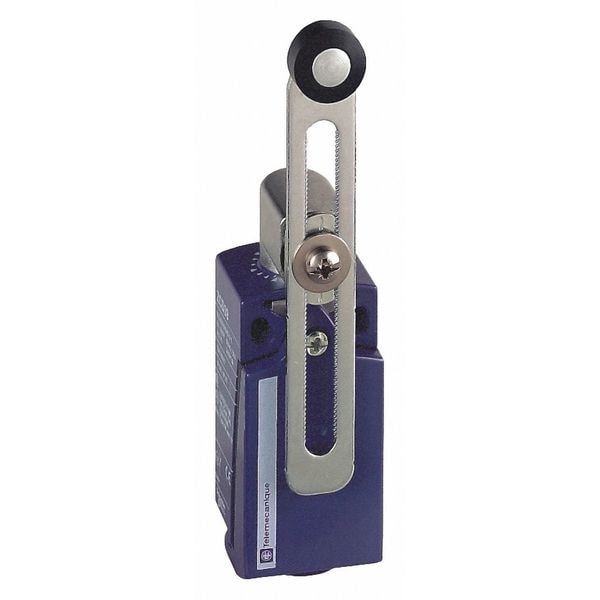

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKD2145N12 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKD2145N12

  • Zoro # G3222667

product price:  $95.25
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKD2145N12
Zoro #
G3222667
UPC #
785901300489
Country of Origin
France

Dimensions

Width
1.22"
Actuator Length - Limit Switch
1.30 in to 3.29 in
Actuator Length
1.30" to 3.29"
Roller Dia.
0.63 in
Height
2.56"
Body Depth - Limit Switch
1.18 in
Body Height - Limit Switch
2.56 in
Roller Width
0.22 in
Body Width - Limit Switch
1.22 in
Depth
1.18"
Body Width
1.21 in
Mounting Hole Diameter
0.17 in
Body Depth
1.2 in
Overall Height
3.12 in
Overall Width
1.21 in
Body Height
2.56 in
Roller Diameter
0.63 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.26 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Rotary, Adjustable Roller Lever
Amps
10
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form
1NC/1NO
Contact Form - Limit Switch
1NC/1NO
AC Contact Rating
10A at 240V
Stem Thread - Limit Switch
No Stem
IP Rating
67
Roller Material
Thermoplastic
Movement
CCW, CW
Operating Force
0.9 in-lb
Body Material
Zinc
DC Contact Rating
10A at 240V
Arm Material
Zinc
Limit Switch Style
General Purpose Limit Switch
Voltage Rating
240VAC/DC
NEMA Rating
1, 12, 13, 2, 4, 6
Mounting Hole - Limit Switch
(2) 0.17 in dia
Series
XCKD
Basic Actuator Style (Limit Switch)
Rotary
Electrical Connection
Screw Terminals
Actuator Location (Limit Switch)
Side
Actuator Location
Side
Boot Sealed Actuator - Limit Switch
No
Travel
Total Travel 90 Degrees
Actuator Style
Adjustable Roller Lever
Boot Sealed Actuator (Limit Switch)
No
Standards
CE, CSA, UL
Mounting Hole Spacing - Limit Switch
0.75 in
Wiring Entry
1/2 in NPT
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-13 Degrees to 158 Degrees F
Special Features
lateral approach, 2 directions
Certification
UL || CCC || CSA
Head Material
zamak
Head Type
rotary head
Actuation Type
by 30° cam
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Contact Action
snap action
Min. Actuation Velocity Horizontal
1.5 m/s
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short Circuit Protection
10 A cartridge fuse gG
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length
Mounting Hole Horizontal Center to Center Distance
19 mm
Number of Mounting Holes
2
Resistance Properties
Shock Resistant, Vibration Resistant
Total Travel
90 Degrees
Operating Temperature - Maximum
158 Degrees F
Operating Torque - Maximum
0.9 in-lb
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Temperature - Minimum
-13 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature
