  8. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

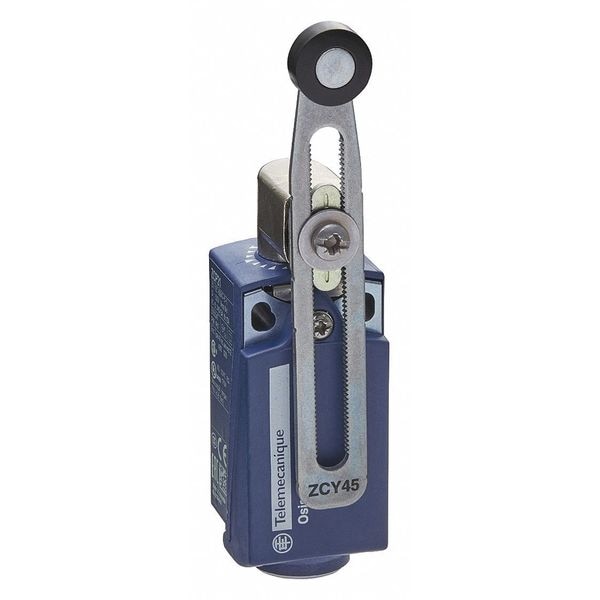

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKP2145N12 - main
Shop TELEMECANIQUE SENSORS

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKP2145N12

  • Zoro # G0577945

product price:  $93.15
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2145N12
Zoro #
G0577945
UPC #
785901496564
Country of Origin
France

Dimensions

Actuator Length - Limit Switch
1.30 in to 3.29 in
Actuator Length
1.30" to 3.29"
Body Depth - Limit Switch
1.18 in
Roller Width
0.22 in
Width
1.22"
Body Width - Limit Switch
1.22 in
Body Height - Limit Switch
2.56 in
Depth
1.18"
Roller Dia.
0.63 in
Height
2.56"
Manufacturer Warranty Length
18 mo
Body Height
2.56 in
Overall Height
3.12 in
Body Width
1.21 in
Mounting Hole Diameter
0.17 in
Overall Depth
1.26 in
Overall Width
1.21 in
Roller Diameter
0.63 in
Body Depth
1.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Roller Material
Thermoplastic
DC Contact Rating
0.27 A @ 250 V
Voltage Rating
240VAC/DC
Amps
10
AC Contact Rating
10 A @ 240 V
Boot Sealed Actuator (Limit Switch)
No
Stem Thread - Limit Switch
No Stem
Wiring Entry
1/2 in NPT
Mounting Hole Spacing - Limit Switch
0.75 in
Operating Force
0.9 in-lb
Body Material
plastic
Contact Form - Limit Switch
1NC/1NO
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP66, IP67
Actuator Location
Side
Actuator Style (Limit Switch)
Rotary, Adjustable Roller Lever
Movement
CCW, CW
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Travel
Total Travel 90 Degrees
Mounting Hole - Limit Switch
(2) 0.17 in dia
Electrical Connection
Screw Clamp Terminals
Boot Sealed Actuator - Limit Switch
No
Body Style (Limit Switch)
Miniature
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form
1NO/1NC
Series
XCKP
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location (Limit Switch)
Side
Actuator Style
Roller Lever Plunger
Limit Switch Style
General Purpose Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 6
Arm Material
Zinc
Head Material
zamak
Certification
CCC || CSA || UL
Special Features
lateral approach, 2 directions
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
1.5 m/s
Short Circuit Protection
10 A cartridge fuse gG
Head Type
rotary head
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Contact Action
snap action
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
by 30° cam
Type Of Operator
spring return roller lever thermoplastic variable length
Number Of Poles
2
Mounting Hole Horizontal Center to Center Distance
19 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number of Mounting Holes
2
Directional Movement
CCW/CW
Operating Torque - Maximum
0.9 in-lb
Operating Temperature - Minimum
-13 Degrees F
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Mounting Style
Surface
Resistance Properties
Shock Resistant, Vibration Resistant
Total Travel
90 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature
