  15. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

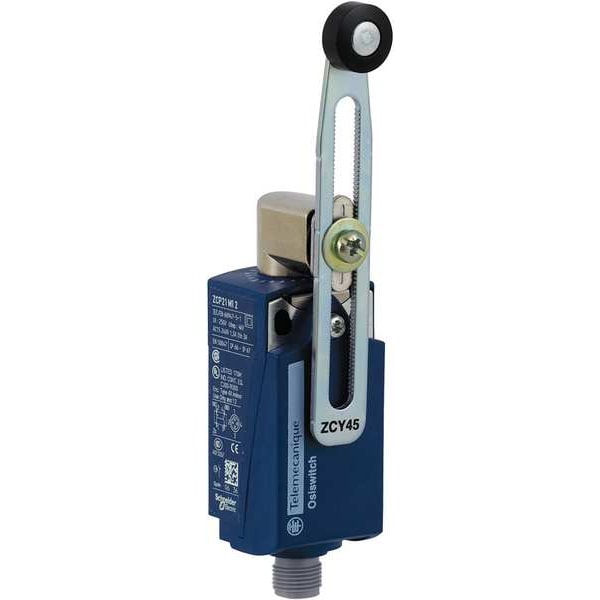

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side XCKP2145M12 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

  • Mfr # XCKP2145M12

  • Zoro # G2306437

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2145M12
Zoro #
G2306437
UPC #
785901685234
Country of Origin
France

Dimensions

Actuator Length - Limit Switch
1.30 in to 3.29 in
Body Depth - Limit Switch
1.18 in
Roller Width
0.22 in
Body Height - Limit Switch
2.56 in
Height
2.56"
Actuator Length
1.30" to 3.29"
Body Width - Limit Switch
1.22 in
Depth
1.18"
Roller Dia.
0.63 in
Width
1.22"
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Roller Diameter
0.63 in
Body Depth
1.18 in
Mounting Hole Diameter
0.17 in
Overall Height
2.56 in
Body Height
2.56 in
Overall Width
1.22 in
Body Width
1.22 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
DC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
IP Rating
67
Contact Form
1NC/1NO
Body Material
plastic
Actuator Location (Limit Switch)
Side
Series
XCKP
AC Contact Rating
3A at 240V
Electrical Connection
M12 4-Pin Connector
Limit Switch Style
General Purpose Limit Switch
Actuator Style (Limit Switch)
Rotary, Adjustable Roller Lever
Operating Temp. Range
-13 Degrees to 158 Degrees F
Voltage Rating
240VAC/DC
Roller Material
Thermoplastic
Body Style (Limit Switch)
Miniature
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
0.75 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form - Limit Switch
1NC/1NO
Travel
90 Degrees
DC Contact Rating
3A at 240V
Boot Sealed Actuator - Limit Switch
No
Standards
CE, CSA, UL
Stem Thread - Limit Switch
No Stem
NEMA Rating
1, 12, 13, 2, 4, 6
Movement
CCW, CW
Wiring Entry
Connector
Amps
3
Mounting Hole - Limit Switch
(2) 0.17 in dia
Operating Force
0.9 in-lb
Actuator Location
Side
Arm Material
Zinc
Actuator Style
Adjustable Roller Lever
Basic Actuator Style (Limit Switch)
Rotary
Head Material
zamak
Special Features
lateral approach, 2 directions
Certification
UL || CSA || CCC
Weight
0.15 kg
Short Circuit Protection
4 A cartridge fuse gG
Mechanical Durability
10000000 cycles
Head Type
rotary head
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
by 30° cam
Min. Actuation Velocity Horizontal
1.5 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length
Mounting Hole Horizontal Center to Center Distance
19 mm
Directional Movement
CCW/CW
Mounting Style
Surface
Operating Torque - Maximum
0.9 in-lb
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 3A @ 240V, DC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
