  15. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

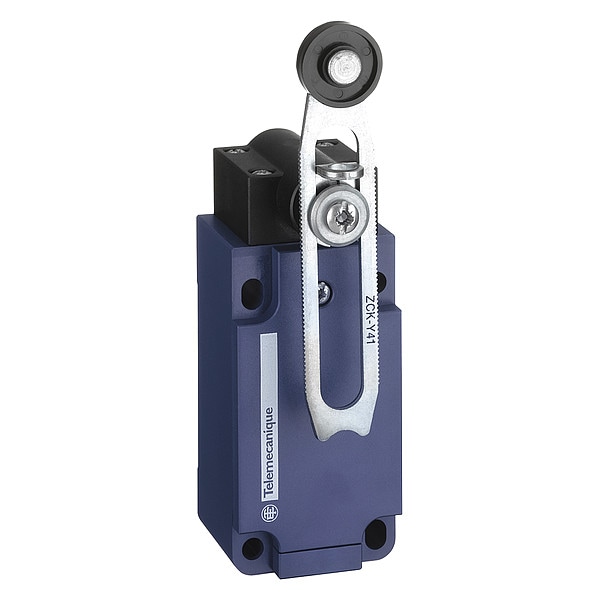

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side XCKS141H7 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

  • Mfr # XCKS141H7

  • Zoro # G0200666

product price: $65.99
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKS141H7
Zoro #
G0200666
UPC #
785901715290
Country of Origin
Indonesia

Dimensions

Width
40 mm
Roller Width
0.22 in
Body Height - Limit Switch
117-172 mm
Body Width - Limit Switch
1.57 in
Arm Width
0.75 in
Body Depth - Limit Switch
57 mm
Roller Dia.
0.75 in
Body Depth
1.46 in
Overall Height
6.77 in
Body Width
1.57 in
Overall Depth
2.24 in
Overall Width
1.57 in
Roller Diameter
0.75 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Certification
CCC, CSA, UL
Body Style (Limit Switch)
fixed
Contact Form
1NC/1NO
Series
XCKS
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Electrical Connection
Screw Terminals
Wiring Entry
1/2 in NPT
Standards
CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508
Roller Material
Thermoplastic
Actuator Location
Side
Contact Form - Limit Switch
1NC/1NO
Actuator Style
Roller Lever Plunger
Movement
Angular
Head Material
plastic
AC Contact Rating
3 A @ 240 V
IP Rating
66, 67
DC Contact Rating
0.27 A @ 250 V
Arm Material
Thermoplastic
Body Material
Plastic
Special Features
1 or 2 programmable direction, Lateral approach
Head Type
rotary head
Min. Actuation Velocity Horizontal
1.5 m/s
Shock Resistance
40 gn 11 ms IEC 60068-2-27
Contact Action
snap action
Short Circuit Protection
10 A cartridge fuse gG
Actuation Type
by 30° cam
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
20000000 cycles
Weight
0.165 kg
Operating Torque - Maximum
0.89 in-lb
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Directional Movement
Angular
Mounting Style
Surface
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length

Description

Limit switch, Actuator Style - Limit Switch Lever, Roller, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Body Width - Limit Switch 1.57 in, Body Style - Limit Switch Miniature, Mounting - Limit Switch Surface, Electrical Connection Screw Clamp Terminals, IP Rating IP66, IP67, Special Features 1 or 2 programmable direction, Lateral approach
