  15. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side

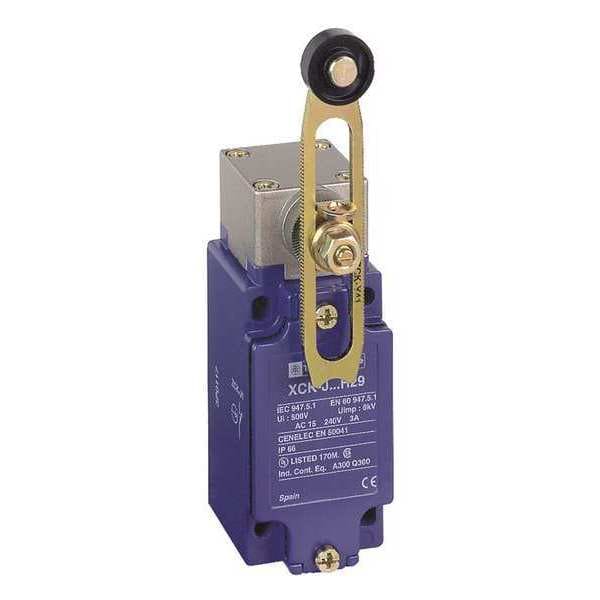

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side XCKJ10541 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side

  • Mfr # XCKJ10541

  • Zoro # G0835847

product price: $151.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Amps
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKJ10541
Zoro #
G0835847
UPC #
785901230984
Country of Origin
Indonesia

Dimensions

Body Height - Limit Switch
77 mm
Width
40 mm
Body Depth - Limit Switch
44 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Amps
10
Actuator Style
Roller Lever Plunger
IP Rating
IP66 conforming to IEC 60529
Electrical Connection
screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Body Style (Limit Switch)
fixed
Series
XCKJ
Certification
CCC || UL || CSA
Body Material
zamak
Operating Temp. Range
-25-70 °C
Movement
rotary
Head Material
zamak
Standards
CENELEC EN 50041 || EN 60204-1 || CSA C22.2 No 14 || IEC 60204-1 || UL 508 || EN 60947-5-1 || IEC 60947-5-1
Special Features
lateral approach, 1 or 2 programmable direction
Contact Action
snap action
Head Type
rotary head
Min. Actuation Velocity Horizontal
1.5 m/s
Short Circuit Protection
10 A cartridge fuse gG
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Actuation Type
by 30° cam
Mechanical Durability
30000000 cycles
Weight
0.485 kg
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Operating Torque - Maximum
2.21 in-lb
Type Of Operator
spring return roller lever thermoplastic variable length
Number Of Poles
2

Description

Limit Switch
