AC Contact Rating
3 A @ 240 V
DC Contact Rating
0.27 A @ 250 V
Electrical Connection
Screw Clamp Terminals
Mounting Hole Vertical Center to Center Distance
60 mm
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
30 mm
Compatible with Manufacturer Model Number
ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67
Body Configuration
Non Plug-In
Compatible with Series
XCKJ
Indicating Light
No Indicating Light Included
NEMA Enclosure Rating
1, 12, 2, 3, 4
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Cable Entry
1 entry tapped for M20 x 1.5 cable gland
Contacts Type And Composition
1 NC + 1 NO
Product Compatibility
XCKJ

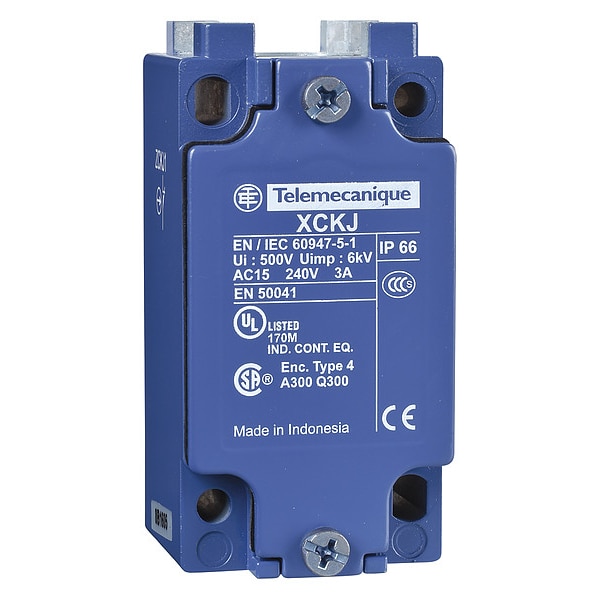

Product Or Component Type
limit switch body
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Ambient Air Temperature For Operation
10-120°C high temperature
[Ithe] Conventional Enclosed Thermal Current
10 A
Series Name
standard format
Contacts Material
silver plated contacts
Terminals Description Iso N°1
(21-22)NC || (13-14)NO || (23-24)NO || (11-12)NC
Minimum Actuation Speed
0.01 m/min
Ambient Air Temperature For Storage
10-120°C
Contact Operation
snap action
Associated Head
ZCKE61 || ZCKE05 || ZCKE06 || ZCKE67 || ZCKE08 || ZCKE21 || ZCKE65 || ZCKE629 || ZCKE62 || ZCKE63 || ZCKE66 || ZCKE64 || ZCKE23 || ZCKE619
Short-Circuit Protection
10 A cartridge fuse gG
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Environmental Characteristic
high temperature
Ip Degree Of Protection
IP66
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Ik Degree Of Protection
IK07
Number Of Steps
1 1 position
Compatible Manufacturer Part Number
ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67
Compatible Manufacturer Model Number
ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67
