Shop All Push Button Control Stations
Schneider Electric

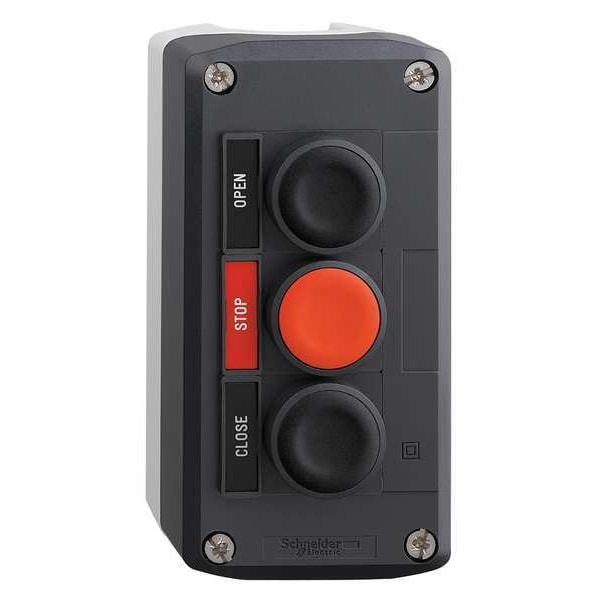

Push Buttn Cntrl Station, Open/Stop/Close

product price: $133.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Form 2NO/1NC
  • Basic Material polycarbonate
  • Legend Open/Stop/Close
  • Type of Operator Push Button/Push Button/Push Button
  • Number of Pilot Lights 0
See all product information

Product Information

Dimensions

Size 22 mm
Width 2.68 in
Height 2 in
Depth 5.27 in
Overall Depth 5.27 in
Hub Size - Maximum 9/16 in
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo
Overall Height 2 in
Overall Width 2.68 in

Details

Item Control Station
Contact Form 2NO/1NC
Basic Material polycarbonate
Legend Open/Stop/Close
Type of Operator Push Button/Push Button/Push Button
Number of Pilot Lights 0
Number of Operators 3
NEMA Rating 13, 4X
Hub Style Feed-Thru
Series Harmony
Contact Rating 10A @ 600V AC, 2.5A @ 24V DC
Housing Color light grey RAL 7035)
Standards CE, CSA, IEC, UL Listed
Action Momentary/Momentary/Momentary
Mechanical Interlock No
IP Rating IP66, IP67, IP69, IP69K
Green Environmental Attribute RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation A600/Q600
Enclosure Material Plastic
Operator Color (2) Green, Red
Enclosure Color Dark Gray/Light Gray
Voltage 600 V
Number of Speeds 1
Cable Entry 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Application three functions
Terminal Connection screw clamp terminal
NEMA Enclosure Rating 13, 4X
DC Contact Rating 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Operator Configuration (3) Push Buttons
Product Type Control Station
Includes Mechanical Interlock No Mechanical Interlock Included.
Resistance Properties Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Operating Temperature - Minimum -40 Degrees F
Operating Temperature - Maximum 158 Degrees F
Hazardous Location Specification Not Rated

Description

Control Station, Number of Operators 3, Number of Pilot Lights 0, Size 22 mm, Legend Open/Stop/Close, Type of Operator Push Button/Push Button/Push Button, Action Momentary/Momentary/Momentary, Operator Color (2) Green, Red, Contact Form 2NO/1NC, Mechanical Interlock No, NEMA Rating 13, 4X, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, IP67, IP69, IP69K, Height 2 in, Width 2.68 in, Depth 5.27 in, Enclosure Material Plastic
