  15. Limit Switch, NC-NO, Form Z, 10A at 600V AC

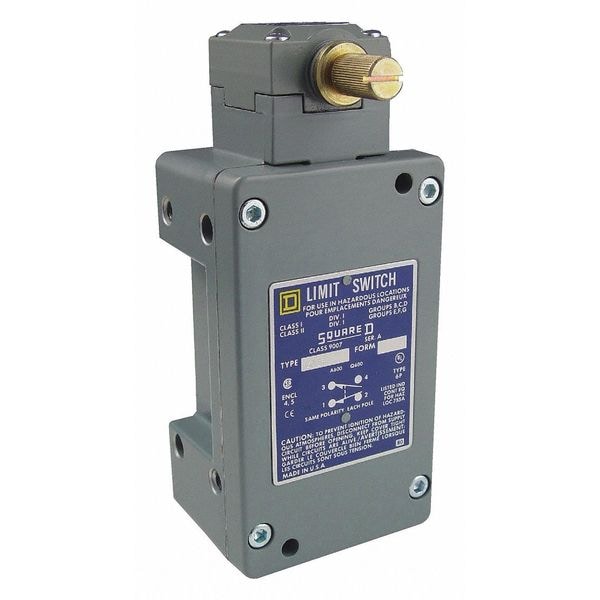

Telemecanique Sensors Limit Switch, NC-NO, Form Z, 10A at 600V AC 9007CR53A2 - main

Limit Switch, NC-NO, Form Z, 10A at 600V AC

  • Mfr # 9007CR53A2

  • Zoro # G0836160

product price: $352.44
/ea
Free Shipping & Returns

Key Features

Contact Form- Switches
NC-NO; Form Z
AC Contact Rating - Limit Switch
10A @ 600V
DC Contact Rating - Limit Switch
10A @ 600V
Amps
10
Special Features
lateral approach, 1 or 2 programmable direction
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007CR53A2
Zoro #
G0836160
UPC #
785901763345
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
6.1in
Width
2.72 in
Body Depth - Limit Switch
2.79 in

Details

Item
Limit Switch
Contact Form- Switches
NC-NO; Form Z
AC Contact Rating - Limit Switch
10A @ 600V
DC Contact Rating - Limit Switch
10A @ 600V
Amps
10
Special Features
lateral approach, 1 or 2 programmable direction
Body Material
aluminium, metal
Head Material
zinc
NEMA Rating
NEMA 1 Nema type 250, NEMA 2 Nema type 250, NEMA 4 Nema type 250, NEMA 6 Nema type 250, NEMA 6P Nema type 250, NEMA 12 Nema type 250, NEMA 13 Nema type 250
Series
9007CR
Electrical Connection
screw-clamp terminals AWG 22...AWG 12), 1-2
Operating Temp. Range
-20-185 Degrees F hazardous location
Differential Travel
2 Degrees
Contact Form
Form Z
Standards
2.5 kV AC 1 min CE, 2.2 kV AC 1 min UL, 2.64 kV AC 1 s CSA
Contact Material
silver contacts
Body Style (Limit Switch)
fixed
Movement
rotary
IP Rating
IP67 conforming to IEC 60529
Actuation Type
from left and right, CW and CCW
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Head Type
rotary head
Min. Actuation Velocity Horizontal
90 ft/min with 45 Degree cam angle, levers only, 130 ft/min with 30 Degree cam angle, levers only
Short Circuit Protection
10 A CC non-time delay
Electrical Durability
1000000 cycles
Weight
2.5 lb(US)
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Pretravel
5 Degrees
Operating Force - Maximum
4 lbf
Total Travel
90 Degrees
Includes Actuator
No Actuator Included
Number Of Poles
1
Type Of Operator
zinc spring return without operating lever low differential)9007C lever

Description

Limit Switch
