  15. Limit Switch, NC-NO SPDT-DB, Form Z, 15A at 600V AC

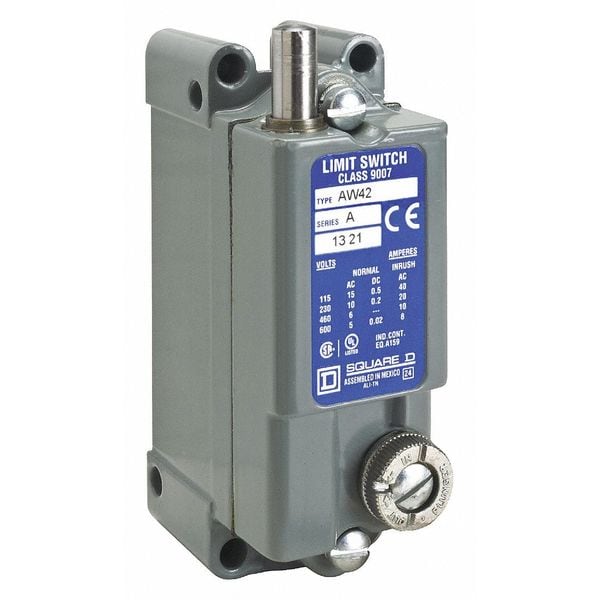

Telemecanique Sensors Limit Switch, NC-NO SPDT-DB, Form Z, 15A at 600V AC 9007AW42 - main

Limit Switch, NC-NO SPDT-DB, Form Z, 15A at 600V AC

  • Mfr # 9007AW42

  • Zoro # G0560701

product price: $325.99
/ea
Free Shipping & Returns

Key Features

Contact Form- Switches
NC-NO SPDT-DB; Form Z
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
surface mounting standard box
Amps
15
Special Features
vertical approach, 1 direction
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007AW42
Zoro #
G0560701
UPC #
785901808534
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
3.68 in
Body Depth - Limit Switch
1.44 in
Width
2.22 in
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
Contact Form- Switches
NC-NO SPDT-DB; Form Z
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
surface mounting standard box
Amps
15
Special Features
vertical approach, 1 direction
Movement
linear
Contact Form
Form Z
Actuator Style
Push Rod Plunger
Contact Material
silver contacts
Differential Travel
1.3 in
Series
9007AW
Electrical Connection
1-2 screw-clamp terminals AWG 22...AWG 12)
Body Style (Limit Switch)
fixed
Operating Temp. Range
0-185 Degrees F
Operating Force
3 lbf
NEMA Rating
NEMA 1 Nema type 250, NEMA 2 Nema type 250, NEMA 4 Nema type 250, NEMA 12 Nema type 250, NEMA 13 Nema type 250
Body Material
cast zinc, metal
IP Rating
IP65 conforming to IEC 60529
Weight
1.25 lb(US)
Actuation Type
on end
Contact Action
snap action
Head Type
plunger head
Total Travel
0.25 in
Mounting Hole Vertical Center to Center Distance
89 mm
Plunger Adjustability
Adjustable
Pretravel
0.09 in
Number of Mounting Holes
6
Mounting Hole Horizontal Center to Center Distance
27 mm
Operating Force - Maximum
3 lbf
Type Of Operator
spring return push rod plunger steel with micrometer adjustment
Number Of Poles
1

Description

Limit Switch
