  8. Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

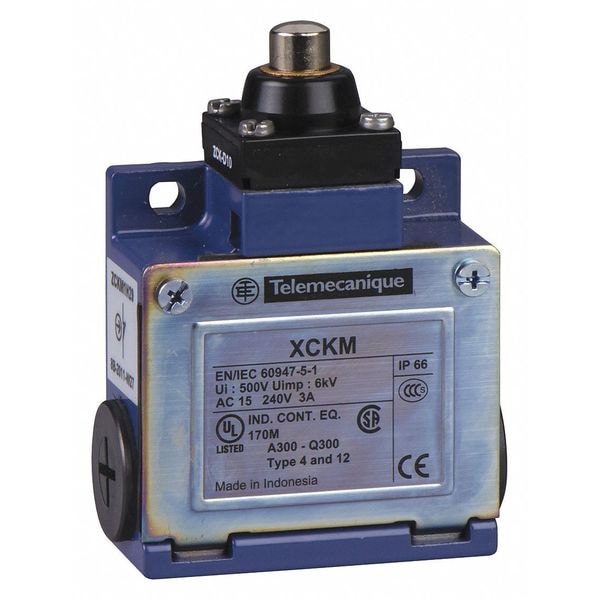

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKM110H7 - main

Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKM110H7

  • Zoro # G0805086

product price:  $118.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKM110H7
Zoro #
G0805086
UPC #
785901237723
Country of Origin
France

Dimensions

Actuator Length
0.98"
Depth
1.18"
Actuator Length - Limit Switch
0.98 in
Body Depth - Limit Switch
1.18 in
Body Width - Limit Switch
2.52 in
Body Height - Limit Switch
2.48 in
Height
2.50"
Width
2.52"
Body Depth
1.18 in
Overall Width
2.52 in
Mounting Hole Diameter
0.2 in
Overall Depth
1.18 in
Body Height
2.48 in
Overall Height
2.52 in
Body Width
2.52 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Wiring Entry
1/2 in NPT
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole Spacing - Limit Switch
1.61 in
Contact Form
1NO/1NC
Contact Form - Limit Switch
1NC/1NO
Limit Switch Style
General Purpose Limit Switch
Series
XCKM
DC Contact Rating
0.27 A @ 250 V
NEMA Rating
1, 12, 13, 2, 4
IP Rating
IP66
Boot Sealed Actuator (Limit Switch)
No
Electrical Connection
Screw Clamp Terminals
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style
Plunger
Standards
CE, CSA, UL Listed
AC Contact Rating
3 A @ 240 V
Voltage Rating
240VAC/DC
Body Style (Limit Switch)
Miniature
Body Material
Zamak
Actuator Location (Limit Switch)
Top
Operating Force
3.4 lb
Movement
Vertical
Boot Sealed Actuator - Limit Switch
No
Amps
10
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Mounting Hole - Limit Switch
(2) 0.20 in dia
Travel
0.22 in
Stem Thread - Limit Switch
No Stem
Actuator Location
Top
Actuator Style (Limit Switch)
Plunger
Certification
UL || CSA || CCC
Special Features
vertical approach, 1 direction
Min. Actuation Velocity Horizontal
0.5 m/s
Contact Action
snap action
Head Type
plunger head
Mechanical Durability
20000000 cycles
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
on end
Short Circuit Protection
10 A cartridge fuse gG
Type Of Operator
spring return plunger metal
Number Of Poles
2
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Hole Horizontal Center to Center Distance
41 mm
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
15 N

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.98 in, Body Height - Limit Switch 2.48 in, Body Width - Limit Switch 2.52 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
