  8. Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

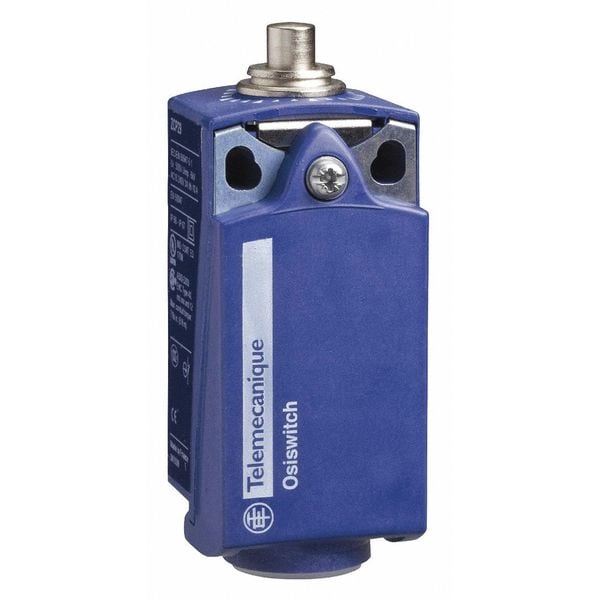

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKP2110G11 - main

Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2110G11

  • Zoro # G6633042

product price:  $68.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2110G11
Zoro #
G6633042
UPC #
785901912781
Country of Origin
Indonesia

Dimensions

Actuator Length - Limit Switch
0.39 in
Height
2.56"
Body Depth - Limit Switch
1.18 in
Body Height - Limit Switch
2.56 in
Width
1.22"
Actuator Length
0.39"
Depth
1.18"
Body Width - Limit Switch
1.22 in
Overall Width
1.22 in
Manufacturer Warranty Length
18 mo
Body Depth
1.18 in
Overall Depth
1.18 in
Mounting Hole Diameter
0.17 in
Overall Height
2.56 in
Body Height
2.56 in
Body Width
1.22 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Location
Top
Mounting Hole Spacing - Limit Switch
0.75 in
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Voltage Rating
240VAC/DC
Boot Sealed Actuator (Limit Switch)
No
Arm Material
Metal
Body Style (Limit Switch)
Miniature
Movement
Vertical
AC Contact Rating
10 A @ 240 V
Basic Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 12, 13, 2, 4, 6
Contact Form - Limit Switch
1NC/1NO
DC Contact Rating
0.27 A @ 250 V
Operating Force
1.9 in-lb
Amps
10
Electrical Connection
Screw Clamp Terminals
Operating Temp. Range
-13 Degrees to 158 Degrees F
Limit Switch Style
General Purpose Limit Switch
IP Rating
IP66, IP67
Boot Sealed Actuator - Limit Switch
No
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Style (Limit Switch)
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Material
plastic
Actuator Style
Plunger
Travel
0.20 in
Contact Form
1NO/1NC
Actuator Location (Limit Switch)
Top
Series
XCKP
Wiring Entry
G11 Metric
Stem Thread - Limit Switch
No Stem
Special Features
vertical approach, 1 direction
Certification
CSA || UL || CCC
Head Material
zamak
Short Circuit Protection
10 A cartridge fuse gG
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Mechanical Durability
15000000 cycles
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Actuation Type
on end
Head Type
plunger head
Min. Actuation Velocity Horizontal
0.5 m/s
Weight
0.09 kg
Operating Temperature - Minimum
-13 Degrees F
Mounting Style
Surface
Operating Torque - Maximum
1.9 in-lb
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
Operating Force - Maximum
15 N
Mounting Hole Horizontal Center to Center Distance
19 mm
Type Of Operator
spring return plunger metal
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.39 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, Mounting - Limit Switch Surface
