  8. Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

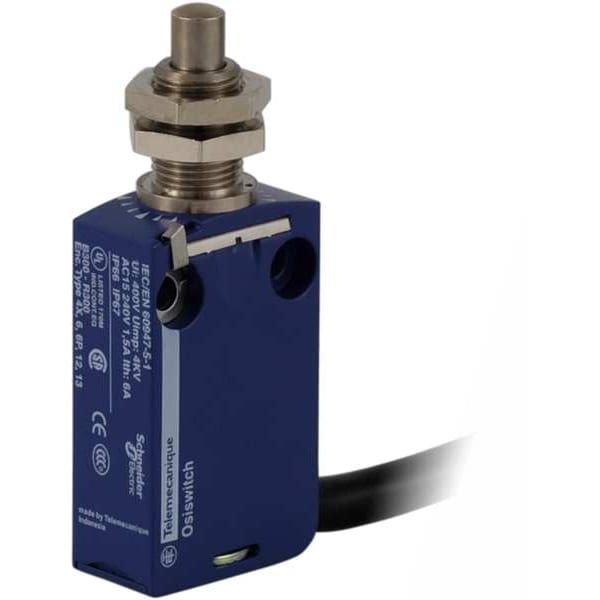

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top XCMD21F0L1 - main

Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

  • Mfr # XCMD21F0L1

  • Zoro # G3227332

product price:  $77.49
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCMD21F0L1
Zoro #
G3227332
UPC #
785901298243
Country of Origin
Indonesia

Dimensions

Width
1.18"
Actuator Length
0.55"
Depth
0.63"
Height
1.97"
Body Height - Limit Switch
1.97 in
Body Width - Limit Switch
1.18 in
Body Depth - Limit Switch
0.63 in
Actuator Length - Limit Switch
0.55 in
Cable Length
1 m
Body Height
2.05 in
Mounting Hole Diameter
0.16 in
Overall Depth
0.63 in
Overall Height
1.97 in
Body Width
1.18 in
Overall Width
1.18 in
Body Depth
0.63 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Stem, Surface
Contact Form
1NC/1NO
Body Material
Zinc
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, UL
Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
0.79 in
IP Rating
68
Contact Form - Limit Switch
1NC/1NO
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
1m Cable, 5 Wire
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Operating Force
1.9 in-lb
Actuator Location (Limit Switch)
Top
Voltage Rating
240VAC/DC
AC Contact Rating
6A at 240V
Amps
6
Actuator Style
Plunger, End, Bushing Mount
Basic Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
Series
XCMD
Movement
Vertical
Limit Switch Style
General Purpose Limit Switch
Mounting Hole - Limit Switch
(2) 0.16 in dia
Stem Thread - Limit Switch
M12 x 1.00 in
DC Contact Rating
6A at 240V
Actuator Location
Top
Wiring Entry
Plug-In Cable
Travel
0.20 in
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Arm Material
Metal
Head Material
zamak
Special Features
vertical approach, 1 direction
Certification
CCC || CSA || UL
Min. Actuation Velocity Horizontal
0.5 m/s
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Weight
0.195 kg
Short Circuit Protection
6 A cartridge fuse gG
Contact Action
snap action
Head Type
M12 plunger head
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Mechanical Durability
10000000 cycles
Actuation Type
on end
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Number Of Poles
2
Type Of Operator
spring return plunger metal
Operating Force - Maximum
8.5 N
Operating Torque - Maximum
1.9 in-lb
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
20 mm
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Number of Mounting Holes
2
Mounting Style
Stem, Surface
Operating Temperature - Minimum
-13 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.55 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
