  15. Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

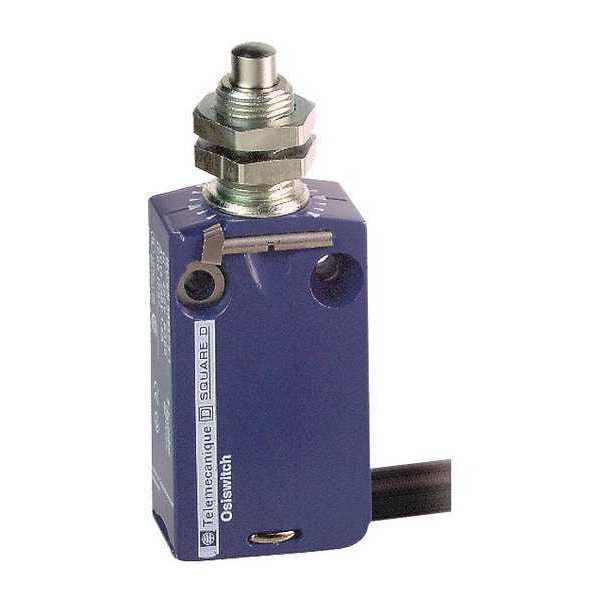

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top XCMD21F0L2 - main

Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

  • Mfr # XCMD21F0L2

  • Zoro # G6876624

product price: $81.59
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCMD21F0L2
Zoro #
G6876624
UPC #
785901269038
Country of Origin
Indonesia

Dimensions

Body Depth - Limit Switch
0.63 in
Actuator Length - Limit Switch
0.55 in
Depth
0.63"
Height
1.97"
Actuator Length
0.55"
Body Width - Limit Switch
1.18 in
Body Height - Limit Switch
1.97 in
Width
1.18"
Cable Length
2 m
Overall Height
1.97 in
Body Height
2.05 in
Overall Depth
0.63 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.16 in
Body Depth
0.63 in
Body Width
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Stem, Surface
Arm Material
Metal
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
AC Contact Rating
6A at 240V
Standards
CE, CSA, UL
Boot Sealed Actuator (Limit Switch)
No
Contact Form
1NC/1NO
Limit Switch Style
General Purpose Limit Switch
Movement
Vertical
Mounting Hole - Limit Switch
(2) 0.16 in dia
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Wiring Entry
Plug-In Cable
Actuator Style
Plunger, End, Bushing Mount
DC Contact Rating
6A at 240V
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style (Limit Switch)
Plunger
Actuator Location (Limit Switch)
Top
Basic Actuator Style (Limit Switch)
Plunger
Amps
6
Mounting Hole Spacing - Limit Switch
0.79 in
Operating Force
1.9 in-lb
Voltage Rating
240VAC/DC
Actuator Location
Top
Boot Sealed Actuator - Limit Switch
No
Body Material
Zinc
Electrical Connection
2m Cable, 5 Wire
Series
XCMD
Travel
0.20 in
IP Rating
68
Contact Form - Limit Switch
1NC/1NO
Stem Thread - Limit Switch
M12 x 1.00 in
Special Features
vertical approach, 1 direction
Head Material
zamak
Certification
CCC || CSA || UL
Mechanical Durability
10000000 cycles
Contact Action
snap action
Min. Actuation Velocity Horizontal
0.5 m/s
Short Circuit Protection
6 A cartridge fuse gG
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
on end
Head Type
M12 plunger head
Operating Torque - Maximum
1.9 in-lb
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Directional Movement
Linear
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Stem, Surface
Boot Sealed Actuator
No Boot Included
Mounting Hole Horizontal Center to Center Distance
20 mm
Operating Force - Maximum
8.5 N
Operating Temperature - Minimum
-13 Degrees F
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.55 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
