  8. Limit switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

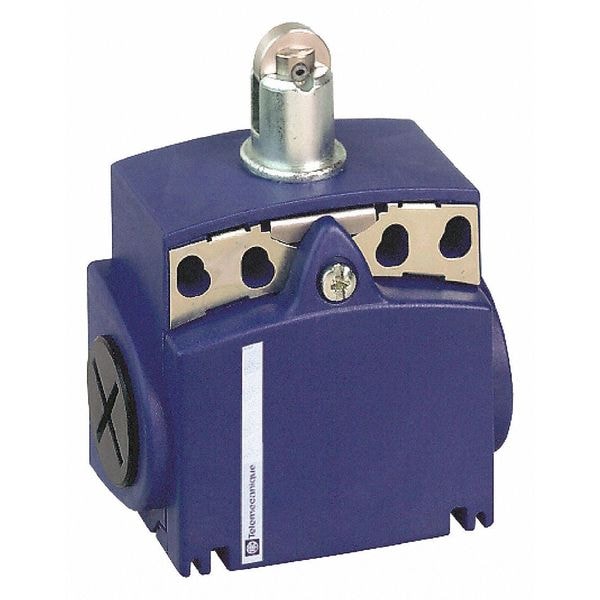

Telemecanique Sensors Limit switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKT2102N12 - main

Limit switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKT2102N12

  • Zoro # G0885771

product price:  $113.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKT2102N12
Zoro #
G0885771
UPC #
785901269618
Country of Origin
France

Dimensions

Body Width - Limit Switch
2.28 in
Roller Dia.
0.46 in
Actuator Length - Limit Switch
0.8 in
Width
2.28"
Roller Width
0.14 in
Actuator Length
0.8 in
Body Height - Limit Switch
2.0 in
Depth
1.18"
Height
2.00"
Body Depth - Limit Switch
1.18 in
Body Height
2 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
1.57 in
Body Depth
1.18 in
Overall Width
3.12 in
Roller Diameter
0.46 in
Body Width
2.28 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
Actuator Location
Top
Series
XCKT
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Body Style (Limit Switch)
Miniature
Boot Sealed Actuator - Limit Switch
No
Roller Material
Steel
Limit Switch Style
General Purpose Limit Switch
Contact Form - Limit Switch
1NC/1NO
Amps
10
Actuator Style
Roller Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
IP Rating
IP66, IP67
Electrical Connection
Screw Clamp Terminals
Basic Actuator Style (Limit Switch)
Plunger
Contact Form
1NO/1NC
Actuator Style (Limit Switch)
Plunger, Roller
Arm Material
Metal
Operating Force
1.6 in-lb
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating
10 A @ 240 V
Actuator Location (Limit Switch)
Top
Body Material
plastic
DC Contact Rating
0.27 A @ 250 V
Voltage Rating
240VAC/DC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Mounting Hole - Limit Switch
(2) 0.17 in dia
Travel
0.31 in
NEMA Rating
1, 12, 13, 2, 4, 6
Mounting Hole Spacing - Limit Switch
1.57 in
Movement
Horizontal
Special Features
lateral approach, 2 directions
Head Material
zamak
Certification
UL || CCC || CSA
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Head Type
plunger head
Short Circuit Protection
10 A cartridge fuse gG
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
by 30° cam
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Force - Maximum
12 N
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Number of Mounting Holes
2
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
40 mm
Operating Temperature - Maximum
158 Degrees F
Operating Torque - Maximum
1.6 in-lb
Mounting Style
Surface
Type Of Operator
spring return roller plunger metal
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
