  8. Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

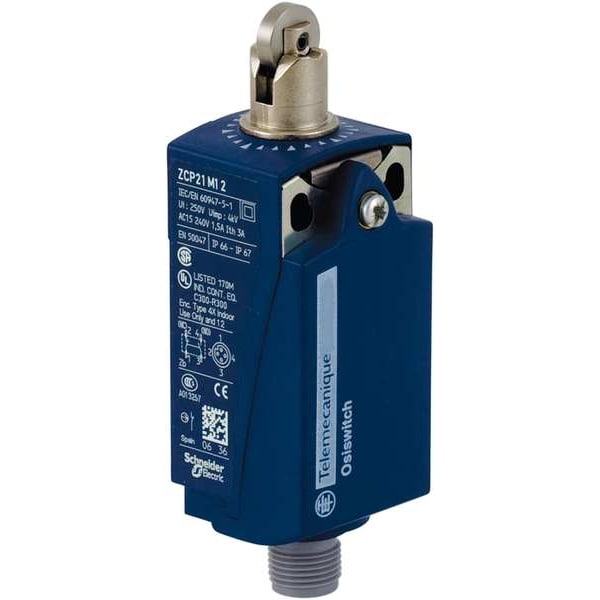

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top XCKP2102M12 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2102M12

  • Zoro # G2889135

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKP2102M12
Zoro #
G2889135
UPC #
785901618447
Country of Origin
France

Dimensions

Width
1.22"
Roller Dia.
0.46 in
Actuator Length
0.80"
Body Depth - Limit Switch
1.18 in
Body Width - Limit Switch
1.22 in
Actuator Length - Limit Switch
0.8 in
Body Height - Limit Switch
2.56 in
Height
2.56"
Depth
1.18"
Roller Width
0.14 in
Overall Depth
1.18 in
Roller Diameter
0.46 in
Mounting Hole Diameter
0.17 in
Manufacturer Warranty Length
18 mo
Overall Height
2.56 in
Body Depth
1.18 in
Body Width
1.22 in
Overall Width
1.22 in
Body Height
2.56 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
DC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Arm Material
Metal
Electrical Connection
M12 4-Pin Connector
Wiring Entry
Connector
Mounting Hole Spacing - Limit Switch
0.75 in
Actuator Style
Plunger, Roller
Stem Thread - Limit Switch
No Stem
AC Contact Rating
3A at 240V
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
NEMA Rating
1, 12, 13, 2, 4, 6
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style (Limit Switch)
Plunger, Roller
Movement
Horizontal
IP Rating
67
Voltage Rating
240VAC/DC
Body Material
plastic
Actuator Location
Top
Actuator Location (Limit Switch)
Top
Operating Temp. Range
-13 Degrees to 158 Degrees F
Body Style (Limit Switch)
Miniature
Series
XCKP
Roller Material
Steel
Operating Force
1.6 in-lb
Mounting Hole - Limit Switch
(2) 0.17 in dia
DC Contact Rating
3A at 240V
Contact Form
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Standards
CE, CSA, UL
Travel
0.31 in
Amps
3
Contact Form - Limit Switch
1NC/1NO
Special Features
lateral approach, 2 directions
Head Material
zamak
Certification
CCC || CSA || UL
Mechanical Durability
15000000 cycles
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Contact Action
snap action
Short Circuit Protection
4 A cartridge fuse gG
Head Type
plunger head
Weight
0.1 kg
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Min. Actuation Velocity Horizontal
0.5 m/s
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Type Of Operator
spring return roller plunger metal
Number Of Poles
2
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Directional Movement
Linear
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
12 N
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
19 mm
Operating Torque - Maximum
1.6 in-lb
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 3A @ 240V, DC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
