  8. Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

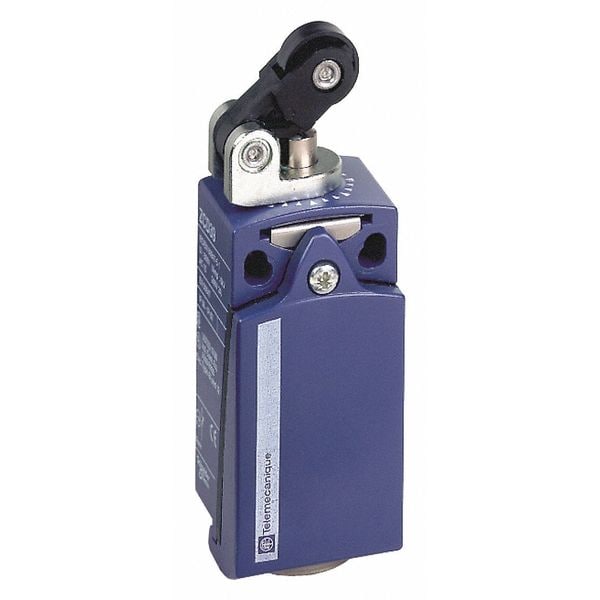

Telemecanique Sensors Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKD2121N12 - main

Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKD2121N12

  • Zoro # G2659501

product price:  $125.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKD2121N12
Zoro #
G2659501
UPC #
785901301424
Country of Origin
France

Dimensions

Body Width - Limit Switch
1.22 in
Actuator Length
0.8 in
Roller Dia.
0.55 in
Actuator Length - Limit Switch
0.8 in
Depth
1.18"
Roller Width
0.22 in
Body Height - Limit Switch
2.56 in
Width
1.22"
Body Depth - Limit Switch
1.18 in
Height
2.56"
Roller Diameter
0.55 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.17 in
Overall Height
3.12 in
Body Depth
1.2 in
Body Width
1.21 in
Body Height
2.56 in
Overall Width
1.21 in
Overall Depth
1.26 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Movement
Horizontal, One Way
Operating Force
1.3 in-lb
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Mounting Hole - Limit Switch
(2) 0.17 in dia
Series
XCKD
Actuator Style
Roller Plunger
Boot Sealed Actuator - Limit Switch
No
Basic Actuator Style (Limit Switch)
Plunger
Travel
0.63 in
Actuator Location
Top
Wiring Entry
1/2 in NPT
AC Contact Rating
10 A @ 240 V
Boot Sealed Actuator (Limit Switch)
No
Stem Thread - Limit Switch
No Stem
Operating Temp. Range
-13 Degrees to 158 Degrees F
Roller Material
Thermoplastic
Contact Form
1NO/1NC
Standards
CE, CSA, UL Listed
Contact Form - Limit Switch
1NC/1NO
Body Material
Zamak
Body Style (Limit Switch)
Miniature
Actuator Style (Limit Switch)
Plunger, Roller Lever
Electrical Connection
Screw Clamp Terminals
NEMA Rating
1, 12, 13, 2, 4, 6
Amps
10
Mounting Hole Spacing - Limit Switch
0.75 in
Actuator Location (Limit Switch)
Top
Voltage Rating
240VAC/DC
IP Rating
IP67
Limit Switch Style
General Purpose Limit Switch
DC Contact Rating
0.27 A @ 250 V
Arm Material
Plastic
Certification
CCC || CSA || UL
Head Material
zamak
Special Features
lateral approach, 1 direction
Contact Action
snap action
Short Circuit Protection
10 A cartridge fuse gG
Min. Actuation Velocity Horizontal
1 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Head Type
plunger head
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Actuation Type
by 30° cam
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
15000000 cycles
Type Of Operator
spring return roller lever plunger thermoplastic
Number Of Poles
2
Mounting Hole Horizontal Center to Center Distance
19 mm
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Torque - Maximum
1.3 in-lb
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Mounting Style
Surface
Operating Force - Maximum
6 N
Number of Mounting Holes
2
Directional Movement
Linear
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
