  15. Limit Switch, Plunger, Spring Return, 1NC/1NO, 10A at 240V AC

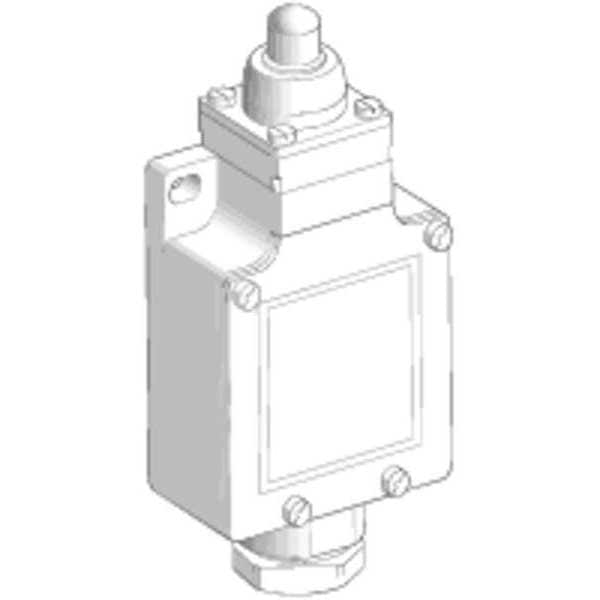

Telemecanique Sensors Limit Switch, Plunger, Spring Return, 1NC/1NO, 10A at 240V AC XCKL110 - main

Limit Switch, Plunger, Spring Return, 1NC/1NO, 10A at 240V AC

  • Mfr # XCKL110

  • Zoro # G0836118

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKL110
Zoro #
G0836118
UPC #
785901646471
Country of Origin
France

Dimensions

Body Depth - Limit Switch
30 mm
Width
52 mm
Body Height - Limit Switch
72mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Special Features
vertical approach, 1 direction
Body Style (Limit Switch)
fixed
Operating Temp. Range
-25-70 Degrees C
Movement
linear
Certification
CSA, UL
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Series
XCKL
IP Rating
IP66 conforming to EN/IEC 60529
Body Material
zamak
Operating Force
15 N
Actuator Style
Plunger
Standards
IEC 60947-5-1, UL 508, EN 60947-5-1, CSA C22.2 No 14, IEC 60204-1, EN 60204-1
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
on end
Mechanical Durability
20000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Short Circuit Protection
10 A cartridge fuse gG
Weight
0.255 kg
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Head Type
plunger head
Contact Action
snap action
Operating Force - Maximum
15 N
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch
