  15. Limit Switch, Plunger, Spring Return, 1NC/1NO, Actuator Location: Top

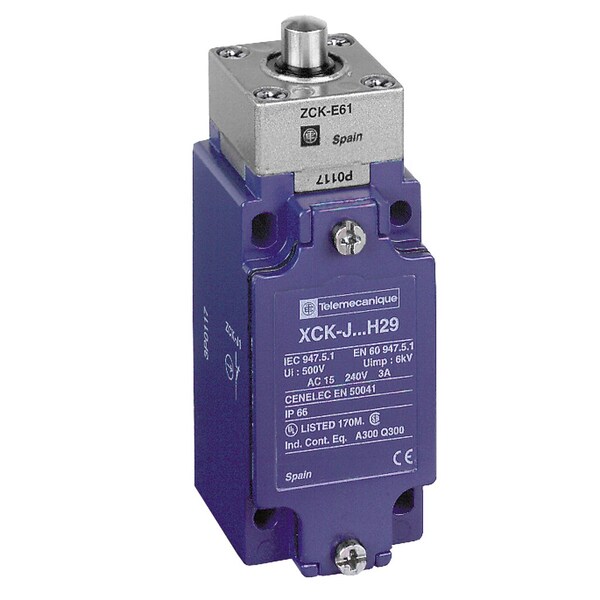

Telemecanique Sensors Limit Switch, Plunger, Spring Return, 1NC/1NO, Actuator Location: Top XCKJ161H29 - main

Limit Switch, Plunger, Spring Return, 1NC/1NO, Actuator Location: Top

  • Mfr # XCKJ161H29

  • Zoro # G3982121

product price: $120.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
Movement
linear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKJ161H29
Zoro #
G3982121
UPC #
-
Country of Origin
France

Dimensions

Body Height - Limit Switch
77 mm
Body Depth - Limit Switch
44 mm
Width
40 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
Movement
linear
IP Rating
IP66 conforming to IEC 60529
Body Style (Limit Switch)
fixed
Series
XCKJ
Head Material
zamak
Certification
CSA || UL || CCC
Body Material
zamak
Standards
EN 60204-1 || EN 60947-5-1 || CENELEC EN 50041 || UL 508 || IEC 60204-1 || CSA C22.2 No 14 || IEC 60947-5-1
Operating Force
20 N
Operating Temp. Range
-25-70 °C
Electrical Connection
screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Special Features
vertical approach, 1 direction
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
30000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Weight
0.43 kg
Actuation Type
on end
Head Type
plunger head
Short Circuit Protection
10 A cartridge fuse gG
Type Of Operator
spring return plunger metal
Number Of Poles
2

Description

Limit switch XCKJ - metal end plunger -
