  8. Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

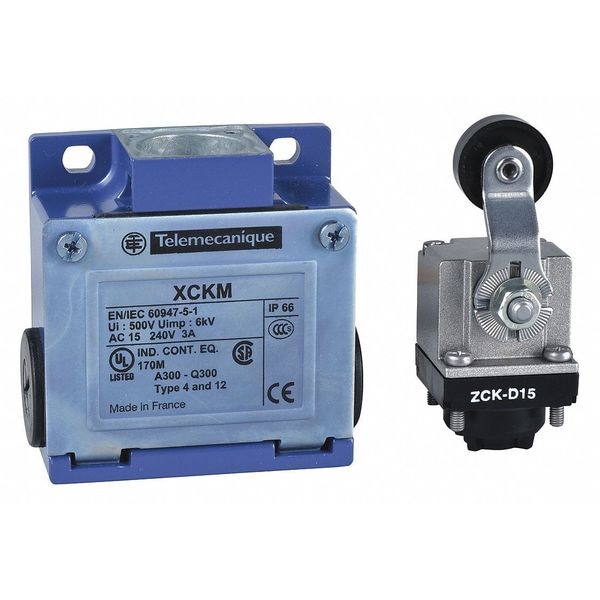

Telemecanique Sensors Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKM115 - main
Shop TELEMECANIQUE SENSORS

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKM115

  • Zoro # G0560939

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKM115
Zoro #
G0560939
UPC #
785901679349
Country of Origin
Multiple

Dimensions

Width
64 mm
Body Height - Limit Switch
64 mm
Body Depth - Limit Switch
30 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Actuator Style
Roller Lever Plunger
Body Style (Limit Switch)
fixed
IP Rating
IP66 conforming to EN/IEC 60529
Series
XCKM
Body Material
zamak
Standards
EN 60204-1, IEC 60204-1, CSA C22.2 No 14, UL 508, EN 60947-5-1, IEC 60947-5-1
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Special Features
lateral approach, 2 directions
Certification
UL, CSA, CCC
Operating Temp. Range
-25-70 Degrees C
Movement
rotary
Actuation Type
by 30 Degree cam
Min. Actuation Velocity Horizontal
1.5 m/s
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
rotary head
Contact Action
snap action
Weight
0.28 kg
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
15000000 cycles
Operating Torque - Maximum
0.89 in-lb
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2

Description

Limit Switch
