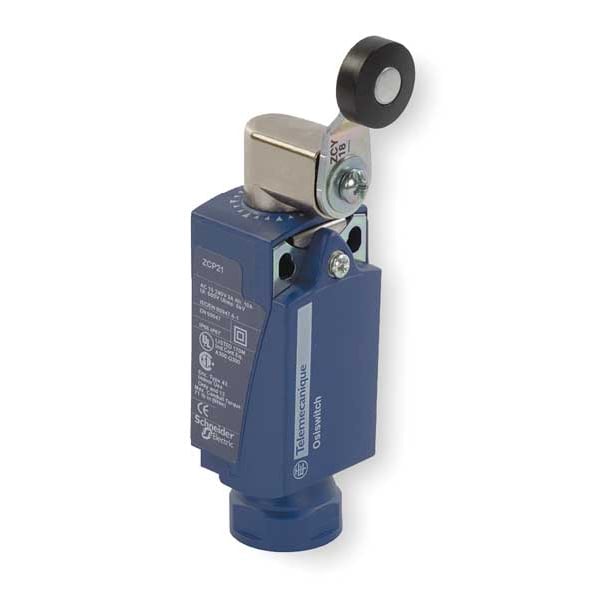

Telemecanique Sensors Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKP2118N12 - main

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKP2118N12

  • Zoro # G7450773

product price:  $83.39
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2118N12
Zoro #
G7450773
UPC #
785901300496
Country of Origin
France

Dimensions

Actuator Length
1.3 in
Body Width - Limit Switch
1.22 in
Body Height - Limit Switch
2.56 in
Width
1.22"
Roller Width
0.22 in
Height
2.56"
Depth
1.18"
Actuator Length - Limit Switch
1.3 in
Roller Dia.
0.75 in
Body Depth - Limit Switch
1.18 in
Body Width
1.21 in
Overall Height
3.12 in
Body Depth
1.2 in
Body Height
2.56 in
Roller Diameter
0.75 in
Mounting Hole Diameter
0.17 in
Overall Width
1.21 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.26 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style
Roller Lever Plunger
Operating Temp. Range
-13 Degrees to 158 Degrees F
Limit Switch Style
General Purpose Limit Switch
Amps
10
Wiring Entry
1/2 in NPT
Operating Force
0.9 in-lb
Mounting Hole - Limit Switch
(2) 0.17 in dia
Body Material
plastic
Travel
Total Travel 90 Degrees
Standards
CCC, CENELEC EN 50041, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
AC Contact Rating
10 A @ 240 V
NEMA Rating
1, 12, 13, 2, 4, 6
Body Style (Limit Switch)
Miniature
IP Rating
IP66, IP67
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
240VAC/DC
Electrical Connection
Screw Clamp Terminals
Actuator Location
Side
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Side
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator - Limit Switch
No
Actuator Style (Limit Switch)
Rotary, Roller Lever
Series
XCKP
Movement
CCW, CW
Arm Material
Metal
Basic Actuator Style (Limit Switch)
Rotary
Roller Material
Thermoplastic
Mounting Hole Spacing - Limit Switch
0.75 in
DC Contact Rating
0.27 A @ 250 V
Contact Form - Limit Switch
1NC/1NO
Contact Form
1NO/1NC
Special Features
lateral approach, 2 directions
Certification
CSA || CCC || UL
Head Material
zamak
Min. Actuation Velocity Horizontal
1.5 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
10000000 cycles
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Head Type
rotary head
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Number of Mounting Holes
2
Operating Temperature - Minimum
-13 Degrees F
Directional Movement
CCW/CW
Operating Torque - Maximum
0.9 in-lb
Mounting Hole Horizontal Center to Center Distance
19 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Total Travel
90 Degrees
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
