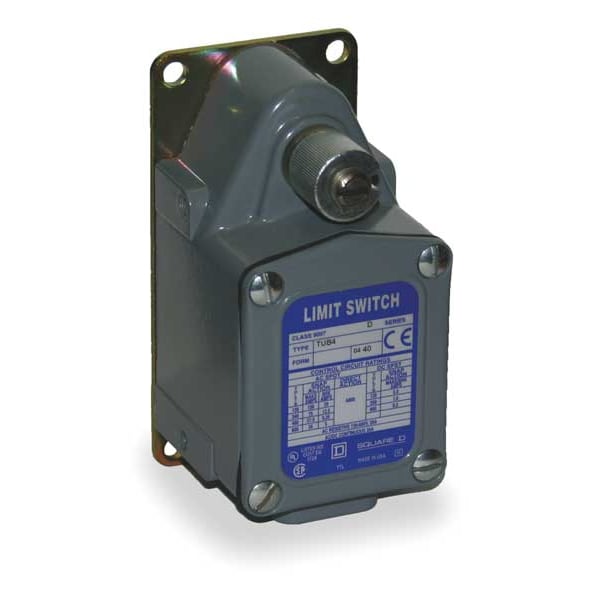

  8. Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A at 600V AC, Actuator Location: Side
Telemecanique Sensors Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A at 600V AC, Actuator Location: Side 9007TSB1 - main

Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A at 600V AC, Actuator Location: Side

  • Mfr # 9007TSB1

  • Zoro # G6143462

product price:  $420.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
20A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007TSB1
Zoro #
G6143462
UPC #
785901751618
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
4.66 in
Height
4.66"
Body Width - Limit Switch
2.25 in
Body Depth - Limit Switch
2.44 in
Width
2.25"
Depth
2.44"
Mounting Hole Diameter
0.25 in
Overall Height
4.66 in
Body Height
4.66 in
Overall Width
2.25 in
Overall Depth
2.44 in
Body Depth
2.44 in
Body Width
2.25 in
Manufacturer Warranty Length
18 mo

Details

Item
Severe Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
20A at 600V
DC Contact Rating - Limit Switch
20A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Rotary, No Lever
NEMA Rating
1, 12, 13, 2, 4
Contact Form - Limit Switch
SPDT
Boot Sealed Actuator (Limit Switch)
No
Series
9007T
Actuator Location (Limit Switch)
Side
Contact Form
SPDT
AC Contact Rating
12.5 A @ 240 V, 20 A @ 120 V, 5 A @ 600 V, 6.25 A @ 480 V
Standards
C22.2-14, CSA, NEMA 250, UL Listed, UL 508
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Side
Electrical Connection
Screw Clamp Terminals
Actuator Style
Rotary Head, No Lever
Operating Temp. Range
-10 Degrees to 185 Degrees F
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
Travel
Total Travel 88 Degrees
DC Contact Rating
0.2 A @ 600 V, 1 A @ 250 V, 5 A @ 120 V
Amps
20
Voltage Rating
600VAC/DC
Mounting Hole - Limit Switch
(4) 0.26 in dia
Basic Actuator Style (Limit Switch)
Rotary
Body Style (Limit Switch)
Standard
Limit Switch Style
Severe Duty Limit Switch
Operating Force
10.0 in-lb
Number of Poles
1
Mounting Hole Spacing - Limit Switch
4.22 in x 1.81 in
IP Rating
IP67
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Movement
CCW, CW
Body Material
Zinc
Contact Material
silver flashed copper
Special Features
lateral approach
Vibration Resistance
10 gn 10-55 Hz)IEC 60068-2-6
Contact Action
snap action
Short Circuit Protection
20 A Bussmann class CC KTK-R-21 fuse non-time delay
Head Type
rotary head
Shock Resistance
30 gn 9 ms IEC 60068-2-27
Weight
2.5 lb(US)
Actuation Type
from left or right || CW and CCW
Min. Actuation Velocity Horizontal
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Mounting Style
Surface
Directional Movement
CCW/CW
Mounting Hole Vertical Center to Center Distance
107 mm
Number of Mounting Holes
4
Total Travel
89 Degrees
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
46 mm
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-10 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4
Operating Torque - Maximum
10 in-lb
Includes Actuator
No Actuator Included
Pretravel
14 Degrees
Boot Sealed Actuator
No Boot Included
Type Of Operator
spring return without operating lever

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 20A @ 600V, DC Contact Rating - Limit Switch 20A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 4.66 in, Body Width - Limit Switch 2.25 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
