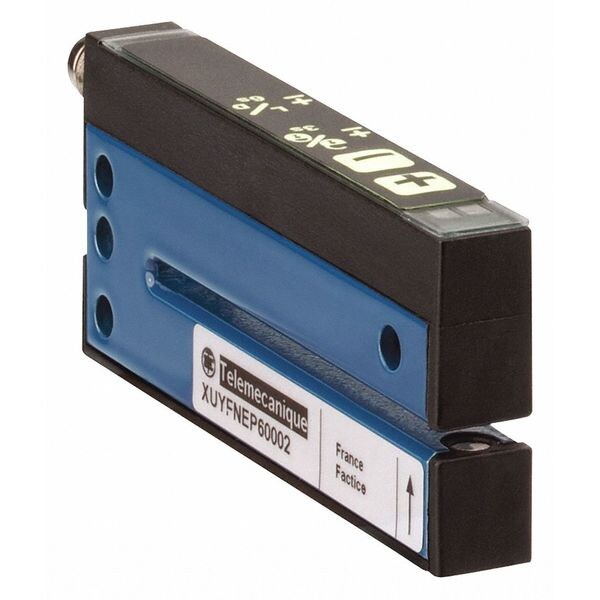

Telemecanique Sensors Through-Beam Photoelectric Sensor, M8, U-Slot, NPN and PNP XUYFNEP60005 - main

Through-Beam Photoelectric Sensor, M8, U-Slot, NPN and PNP

  • Mfr # XUYFNEP60005

  • Zoro # G0654075

product price:  $181.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Through-Beam
Electrical Connection
M8
Style
U-Slot
Material
metal/plastic
IP Rating
IP65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XUYFNEP60005
Zoro #
G0654075
UPC #
785901071396
Country of Origin
France

Dimensions

Passage Width
5 mm
Minimum Object Diameter For Detection
0.2 mm
Passage Depth
59 mm

Details

Item
Photoelectric Sensor
Sensing Method
Through-Beam
Electrical Connection
M8
Style
U-Slot
Material
metal/plastic
IP Rating
IP65
Output Circuit Type
NPN and PNP
Output Circuit Number of Wires
4
DC Voltage Rating
12-24V DC
Standards
CE, cULus
Current Consumption
40 mA no-load
Body Material
Metal
Series Name
Application
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Product Specific Application
detection of reference marks || detection of double sheet || detection of labels || detection on vibrating rail || detection on small conveyor
Ambient Air Temperature For Storage
-30-80°C
Keypad Type
green
Ambient Air Temperature For Operation
-20-60°C
Load Capacitance
330 nF
Detection System
thru beam
Electronic Sensor Type
photo-electric sensor
Type Of Output Signal
discrete
Switching Capacity In Ma
100 mA overload and short-circuit protection)
Time Response
-20-20µs
Maximum Voltage Drop
<2 V closed state)
[Sn] Nominal Sensing Distance
5-5 mm
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Immunity To Ambient Light
10000 lux natural light || 5000 lux incandescent bulb
Status Led
adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
Enclosure Material
painted aluminium and polyamide/glass
Vibration Resistance
7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
Emission
infrared LED, modulated
Switching Frequency
10 kHz
Output Type
solid state
Setting-Up
sensitivity by numeric potentiometer
Sensor Name
XUY
Sensor Design
fork
Supply Circuit Type
DC
Electrical Installation Type
Direct Connector
Series
XUY
Load Current - Maximum
100 mA
Number of Pins
4
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
140 Degrees F

Description

Photoelectric Sensor
