  13. Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range

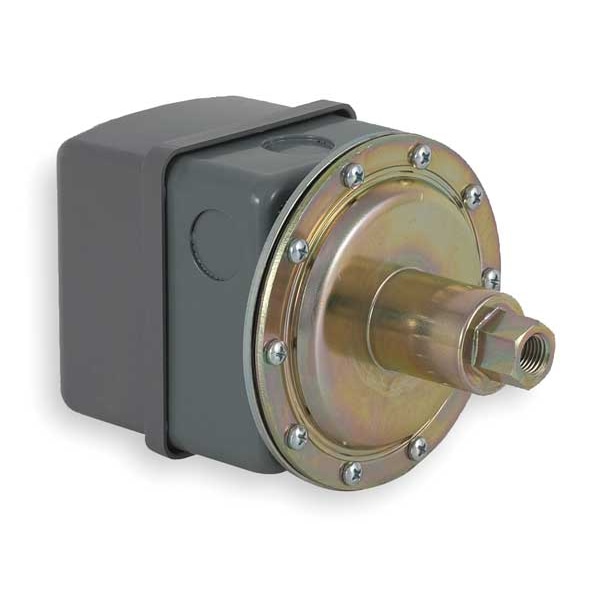

Telemecanique Sensors Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range 9016GVG1J13E - main

Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range

  • Mfr # 9016GVG1J13E

  • Zoro # G2252573

product price: $242.99
/ea
Free Shipping & Returns

Key Features

Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
5 to 25 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9016GVG1J13E
Zoro #
G2252573
UPC #
785901230038
Country of Origin
Mexico

Dimensions

Overall Width
4.58 in
Overall Height
7.13 in
Manufacturer Warranty Length
18 mo
Overall Depth
4.37 in
Vacuum Sensor Size
25 inHg
Depth
4.37 in
Height
7.13 in
Width
4.58 in

Details

Item
Vacuum Switch
Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
5 to 25 in Hg
Series
9016GVG
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Standards
UL 508
Number of Pressure Connection Ports
1
Media Temperature - Minimum
-40 Degrees F
Media Temperature - Maximum
250 Degrees F
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
1
Differential Pressure - Maximum
4.91 psi
Operating Temperature - Minimum
-10 Degrees F
Differential Pressure - Minimum
2.46 psi
Pressure Connection Type
1/4-18" FNPT
Pressure - Maximum
100 psi
Contacts Type And Composition
2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
Vacuum Switch Type Of Operation
regulation between two thresholds
Mechanical Durability
300 cycles
Cable Entry Number
3 knock-outs for 1/2" NPT conduit
Cut Out Range
5-25 inHg
Setting
internal
Pressure Actuator
diaphragm nitrile (Buna-N)
Short-Circuit Protection
20 A cartridge fuse gG
Factory Modification
3-way lever
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC
Device Short Name
9016GVG
Device Application
power circuit application
Enclosure Material
stamped metal
Maximum Operating Rate
100 cyc/mn
Cover Material
polypropylene, noryl thermoplastic resin or equivalent
Product Certifications
UL listed file E12158 CCN NKPZ || CSA file LR25490
Repeat Accuracy
0.025
Approx Adjustable Differential At Mid Range
5-10 inHg
Ambient Air Temperature For Storage
10-185°F
Electrical Circuit Type
power circuit
Operating Position
any position
Maximum Pressure
100 psi
Materials In Contact With Fluid
nitrile (Buna-N) || 3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel
Ambient Air Temperature For Operation
10-185°F
Fluid Connection Type
0.25 inch 18 NPSF UL 508
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Value Of Setting
20...25 inHg
Cut-In Range
0-20 inHg
Product Or Component Type
electromechanical vacuum switch
Nema Degree Of Protection
NEMA 1 UL 698
Terminal Block Type
8 screw terminals
Local Display
without
Scale Type
adjustable

Description

Vacuum Switch, Range 5 to 25 in Hg, Contact Form DPST, Port Type 1-Port 1/4-18 in FNPS, NEMA Rating 1, Action Standard, Differential 5 to 10 in Hg, 9016GVG Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
