- MFR #
- LC1D40AKUE
- Zoro #
- G6542273
- UPC #
- 785901765134
- Country of Origin
- France
- Item

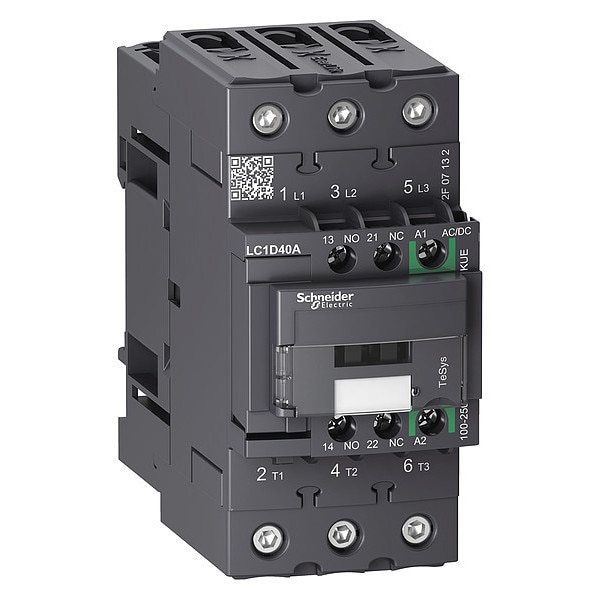

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 100V-250V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 40 A
- Full Load Amps-Resistive
- 60 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 30 hp
- Series
- TeSys Deca
- Includes
- Everlink Power Connections
- Inrush VA
- 18 VA
- Net Weight
- 0.992 kg
- Impedance
- 1.5 mOhm
- Hold VA
- 1.8 VA
- Impulse Withstand Voltage
- 6 kV
- Overvoltage Category
- CAT III
- Operating Speed
- 3600 cycles per hr
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Features
- Built-In Bi-Directional Peak Limiting
- Fuse Amps
- 80 A (Type 1 and 2 Power Circuit), 10 A (Signalling Circuit)
- Application
- Motor Control, Resistive Load
- Rated Insulation Volts
- 690V
- Signalling Circuit Frequency
- 25 to 400 Hz
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Rated Breaking Capacity
- 800 A @ 440V
- Mechanical Durability
- 6 Mcycles
- Fire Rating
- UL 94 V1
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- IP Rating
- IP20
- Rated Making Capacity
- 800 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz AC-3), 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Electrical Durability
- 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V); 2 Mcycles (35 A, AC-3e, Less than 440 V)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Rated Short-Time Withstand Current
- 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Switching Voltage
- 17 V (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Watts Loss
- 1.2W
- Non-Overlap Time
- 1.5 ms
- Includes Protective Cover
- Yes
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Electrical Operating Durability
- 2,000,000, 700,000
- Horsepower @ Three Phase - 600V AC
- 30 hp
- Minimum Operating Temperature
- -40 Degrees F
- Full Load Current - Inductive
- 40 A
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Frequency
- 50/60 Hz
- Maximum Voltage Rating
- 690V AC
- Horsepower @ Three Phase - 480V AC
- 30 hp
- Full Load Current - Resistive
- 60 A
- Number of Normally Open Main Contacts
- 3
- Phase
- Three
- Maximum Operating Temperature
- 140 Degrees F
- Includes Auxiliary Contacts
- Yes
- Mounting Style
- DIN Rail, Plate
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Mechanical Operating Durability
- 6,000,000
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Contactor Style
- IEC
- NEMA Enclosure Rating
- No Enclosure
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Embedded Surge Suppressor
- No
- Conventional Free Air Thermal Current
- 60 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
