  15. WirelessLimitSwitch, RollerLeverPlunger

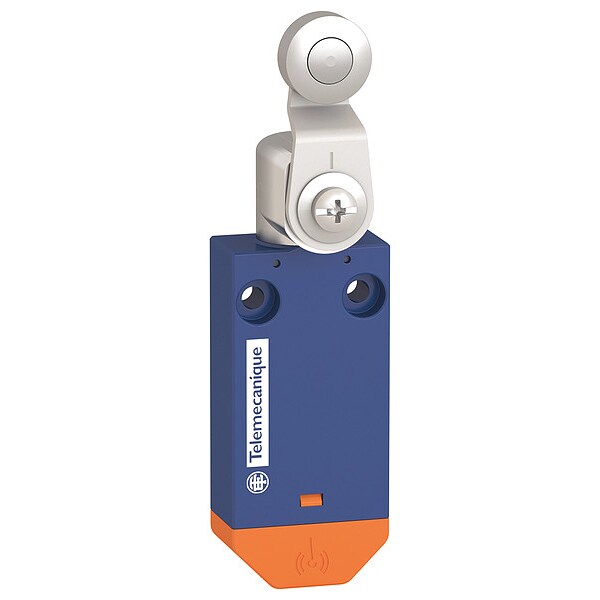

Telemecanique Sensors WirelessLimitSwitch, RollerLeverPlunger XCMW116 - main

WirelessLimitSwitch, RollerLeverPlunger

  • Mfr # XCMW116

  • Zoro # G0196107

product price: $302.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Arm Length
34.4 mm
Roller Dia.
0.63 in
Special Features
lateral approach, 2 directions
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCMW116
Zoro #
G0196107
UPC #
-
Country of Origin
France

Dimensions

Arm Length
34.4 mm
Roller Dia.
0.63 in
Width
1.18 in
Body Height - Limit Switch
108 mm
Body Depth - Limit Switch
16.0 mm
Actuator Length
1.35 in
Roller Width
0.22 in
Depth
0.63 in
Height
4.25 in
Body Height
4.25 in
Overall Depth
0.63 in
Overall Width
1.18 in
Overall Height
4.25 in
Arm Length - Maximum
1.35 in
Body Width
1.18 in
Roller Diameter
0.63 in
Body Depth
0.62 in

Details

Item
Wireless Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Special Features
lateral approach, 2 directions
Operating Temp. Range
-13 Degrees F to 131 Degrees F
Standards
EN/IEC 60947-1, EN/IEC 60947-5-1
On Sensing Distance
100 m in free field || 300 m with external antenna || 25 m in industrial environment
IP Rating
65
Body Material
Plastic
Roller Material
Steel
Body Style (Limit Switch)
fixed
Wireless Range
ZigBee green power 2.4 GHz IEEE 802.15.4
Head Material
metal
Series
XCMW
Arm Material
Metal
Actuator Style
Roller Lever Plunger
Features
Circularity Profile, EU RoHS Directive, Green Premium Product, Mercury Free, RoHS Exemption Information
Style
Wireless Limit Switch
Vibration Resistance
+/- 10 mm 2-11 Hz)IEC 60068-2-6 || 25 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Weight
0.088 kg
Contact Action
snap action
Min. Actuation Velocity Horizontal
0.1 m/s
Mechanical Durability
400000 cycles
Head Type
rotary head
Actuation Type
by 30° cam
Operating Torque - Maximum
4.43 in-lb
Operating Temperature - Minimum
-13 Degrees F
Wireless Network Interface
IEEE 802.15.4
Operating Temperature - Maximum
158 Degrees F
Type Of Operator
spring return roller lever elastomer roller diameter 50 mm

Description

Wireless Limit Switch, IP Rating IP65
