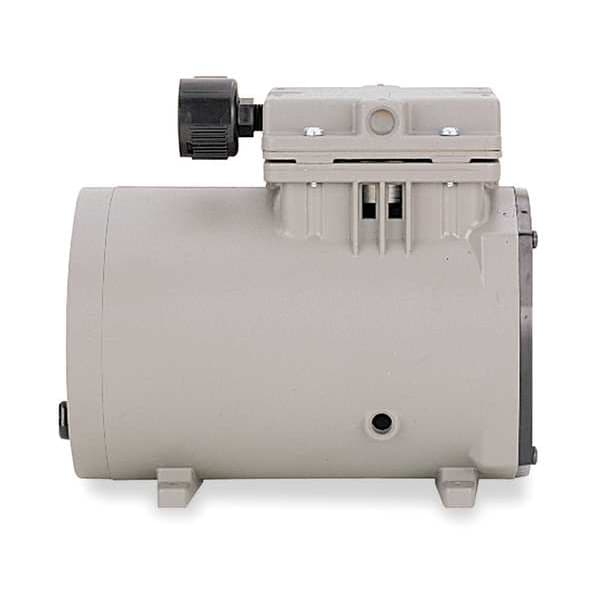

Thomas Piston Air Compressor/Vacuum Pump, 1/8HP 617CA22 - main

Piston Air Compressor/Vacuum Pump, 1/8HP

  • Mfr # 617CA22

  • Zoro # G2335611

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/8 hp
Phase
Single
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
617CA22
Zoro #
G2335611
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
8 in
Overall Height
6.8 in
Overall Width
5 in
Stroke Length
3/16 in
Cord Length
6 ft

Details

Item
Piston Air Compressor/Vacuum Pump
Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/8 hp
Phase
Single
Voltage
115V AC
Sound Rating
63 dBA @ 60 psi
Standards
UL
Thermal Protection
Yes
Full Load Amps
3.1
Free Air CFM @ 0 PSI
0.78
Free Air CFM @ 20 PSI
0.59
Power Cord
yes
Finish
Paint
Free Air CFM @ 10 In. Hg
0.47
Design
Lap Joint Piston Ring
Cylinder Material
Aluminum
Free Air CFM @ 40 PSI
0.42
Free Air CFM @ 20 In. Hg
0.16
Free Air CFM @ 100 PSI
0.07
Max. Vacuum
25.6 in Hg
Temp. Range
104 Degrees to 50 Degrees F
Free Air CFM @ 50 PSI
0.37
Valve
Corrosion Resistant Sandwich
Motor Type
Shaded Pole, Thermally Protected with High Torque Start Winding
Max. PSI Cont./Int.
100/100
Hz
60
Application
Aeration, Beverage Dispensing and Various OEM, Business Machines, Packaging, Photographic Processing, Requiring Intermittent and Continuous Duty
Free Air CFM @ 0 In. Hg
0.78
RPM
1750
Mounting Style
Thru-Bolt
Duty Cycle
Continuous
Valve Material
Stainless Steel
Output Power
0.125 hp
Pump Type
WOB-L Piston
Air Tank Style
Tankless
Current Rating
3.1 A
Piston Type
WOB-L
Maximum Continuous Pressure
100 psi
Maximum Vacuum
25.6 in Hg
Maximum Intermittent Pressure
100 psi
Outlet Type
NPT
Power Source
Corded Electric
Sound Level
63 dBA
Inlet Type
NPT
Maximum Speed
1,540 RPM
Minimum Operating Temperature
50 Degrees F
Maximum Operating Temperature
104 Degrees F
Frequency
60 Hz
Electrical Connection
Cord With Plugs
Valve Type
Corrosion Resistant Sandwich
Free Air Flow Rate
0.13 cfm

Description

Piston Air Compressor/Vacuum Pump, Lubrication Type Oil Free, Number of Cylinders 1, Output Power 0.125 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum 25.6 in Hg, Free Air Flow Rate 0.13 cfm, Maximum Speed 1,540 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
