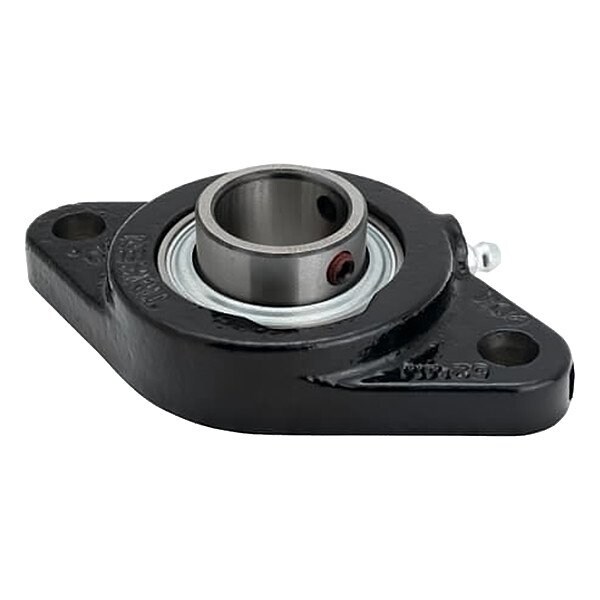

Flange Mount Bearing, AS, 2 in dia
Mfr # YCJT2S
Zoro # G215549056
product price:Â $204.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
YCJT2S
Zoro #
G215549056
UPC #
-
Country of Origin
Canada
Dimensions
Bore Diameter
2 in
Mount Hole Center-to-Center Length
6-3/16 in
Overall Length
7-9/16 in
Overall Width
2-3/8 in
Overall Height
4-9/16 in
Flange Thickness
9/16 in
Center Height
2-17/64 in
Bore Diameter Tolerance
-0.001 in
Mounting Bolt Size
1/2 in
Inner Ring Width
2.187 in
Mount Hole Size
1/2 in
Back Side to Center Width
1.11 in
Description
Flange Mount Bearing, Back Side to Center Width 1.11 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height 2 17/64 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GY1200KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3400 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
