Coolant Through Retention Knob
Mfr # PSCO-541X60
Zoro # G511178073
product price: $37.25
/eaKey Features
Thread Size
M24-3
Overall Length
3.353 in
Knob Angle
60 Degrees
Taper Size
BT50
Number of O-Ring(s)
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PSCO-541X60
Zoro #
G511178073
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M24-3
Overall Length
3.353 in
Taper Size
BT50
Flange to Knob Length
1.788 in
Neck Dia.
0.669 in
Flange to Angle Length
1.394 in
Details
Item
Coolant Through Retention Knob
Knob Angle
60 Degrees
Number of O-Ring(s)
2
Coolant Fed
Coolant Through
Description

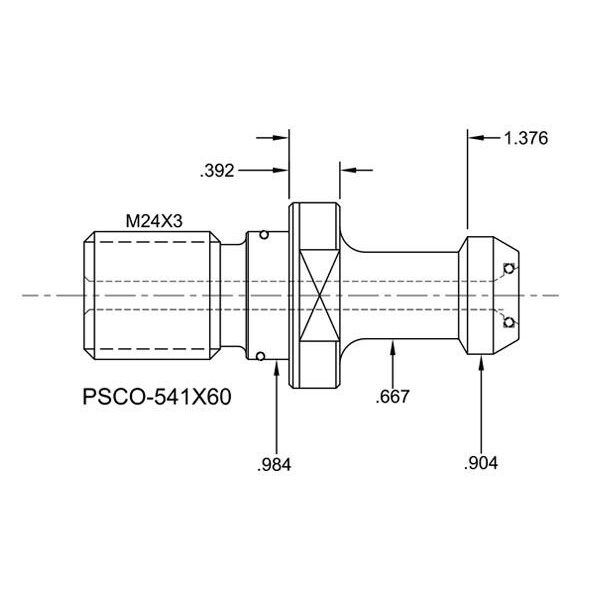

PSCO-541X60,BT50 Coolant Through Retention Knob with a 60 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
