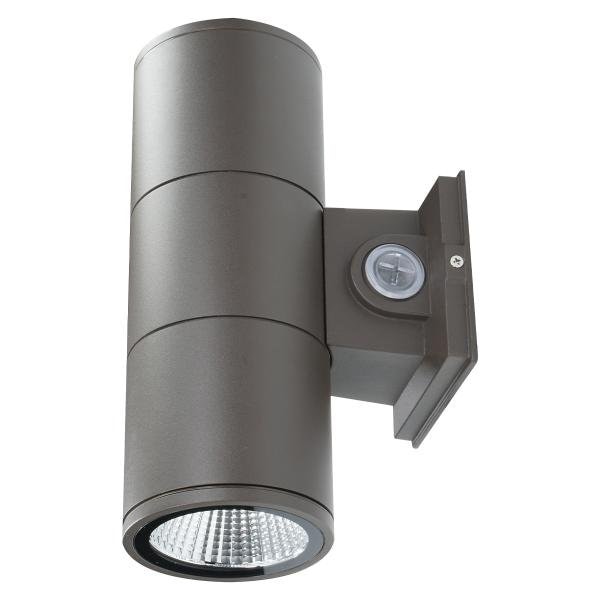

UDC Series LED Cylinder Wall Light, Up/Down, CCT/Power Selectable, 120-277V

The Trace-Lite UDC Series LED Cylinder Wall Light is a modern architectural lighting solution designed for both functional illumination and aesthetic enhancement in commercial and exterior applications. Featuring a sleek 4-inch cylindrical form factor, the UDC Series delivers versatile up, down, or combined up/down lighting to create visually appealing lighting effects for building facades, entryways, and walkways. The fixture offers field-selectable wattage and color temperature, allowing installers to customize performance on-site. Wattage can be adjusted between 12W, 16W, and 20W, delivering up to approximately 2,100 lumens. Selectable color temperatures include 3000K, 4000K, and 5000K, providing flexibility across a wide range of architectural applications. Designed for maximum versatility, the UDC Series includes selectable up, down, or up/down light output, enabling both accent and functional lighting in a single fixture. Three interchangeable reflector options (25 Deg, 40 Deg, and 60 Deg) are included, allowing users to adjust beam spread for precise lighting control. Constructed with a durable die-cast aluminum housing and powder-coated finish, the fixture is built for long-term performance in both indoor and outdoor environments. Glass lenses and aluminum reflectors on both ends ensure high-quality light output and durability. The fixture is cULus listed for wet locations and IP65 rated, making it suitable for exterior applications exposed to moisture and environmental conditions. It operates on universal 120-277VAC input and includes standard 0-10V dimming capability for compatibility with lighting control systems. Installation is simple and efficient, with the unit designed to mount directly to standard 3-inch or 4-inch junction boxes. Internal switches allow easy access to adjust wattage, color temperature, photocontrol settings, and light direction during installation. With high CRI (>/=90), long LED lifetimes exceeding 100,000 hours, and flexible configuration options, the Trace-Lite UDC Series provides a premium lighting solution that balances performance, efficiency, and architectural appeal. Ideal for commercial building exteriors, entrances, corridors, hospitality environments, and architectural accent lighting, the UDC Series delivers a clean, modern aesthetic with customizable illumination.
