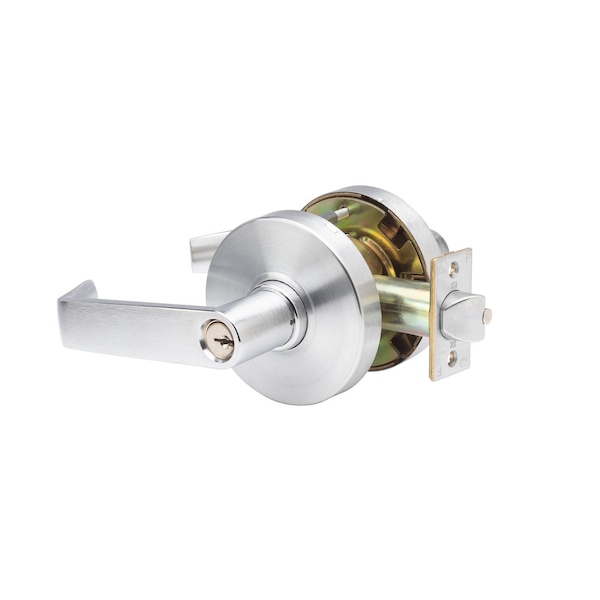

LHV Series Heavy-Duty Commercial Cylindrical Lever W/ Clutch Function Grade1 Entry in Brushed Chrome

The Trans Atlantic (TACO) LHV cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 1, making it the perfect fit for commercial, heavy duty applications.

• •Keyed entry lever best used for security on exterior doors
• •ANSI A156.2 Grade 1 Certified
• •Freewheeling clutch lever mechanism for added safety
• •Fits doors with 1-3/8 to 2 in. thickness
• •Easy installation with hardware included
• •Non-handed/reversible (fits both right and left-handed doors)
• •1 year mechanical and finish warranty
• •Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
• •Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
• •Latch: 5/8 in. projection Stainless Steel 3 hour UL R14897
• •Bore: 2-1/8 in. hole retrofits all cylindrical locksets
• •Schlage "C" keyway, includes two 6-pin keys
• •ADA compliant
• •Heavy duty independent spring action mechanism prevents lever sag
• •Fits 161 prep doors
