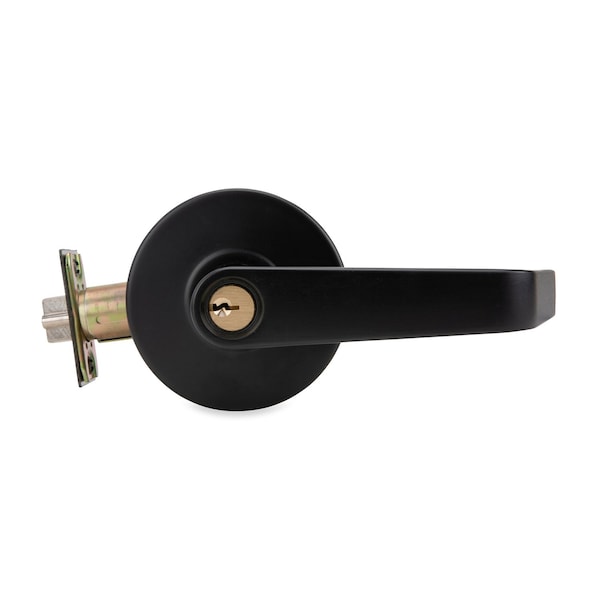

LSV Series Saturn Style Standard-Duty Commercial Cylindrical Lever, Grade 2 Classroom in ORB
Mfr # DL-LSV70-US10B
Zoro # G001860846
product price:
$
83.99
/ea
Key Features
Style
Classic
Lockset Finish
Oil Rubbed Bronze
Keyway Type
C
Finish
Black
Type
Locksets
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DL-LSV70-US10B
- Zoro #
- G001860846
- UPC #
- 704780182344
- Country of Origin
- China
Dimensions
- Width
- 7 in
- Height
- 3.25 in
Details
- Style
- Classic
- Lockset Finish
- Oil Rubbed Bronze
- Keyway Type
- C
- Finish
- Black
- Type
- Locksets
- Location Type
- Commercial
- Material
- Steel
- Color
- Matte Black
- Weight
- 3.2
- Includes
- Hardware;Installation Instructions;Mounting Hardware;Self Guiding Screws
- Grade
- ANSI Grade 2 (Better)
- Features
- Easy Installation
Description
The Trans Atlantic (TACO) LSV Saturn cylindrical classroom leverset comes in a matte black finish and includes an ANSI strike. This classroom door handle has a cylinder on the outside of the door so teachers cannot be locked out from the inside of the classroom. From the inside, the door is always unlocked so students can't get locked in. This leverset is ADA compliant and exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications.
- •Keyed locking lever with locking function disabled on the inside
- •ANSI A156.2 Grade 2 Certified
- •Fits doors with 1-3/4" to 1-5/8" thickness
- •Removable Thru-Bolts to prevent lock rotation
- •Non-handed/reversible (fits both right and left-handed doors)
- •Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
- •Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
- •Schlage "C" keyway, includes two 6 pin keys
- •Latch: 1/2 in. projection Stainless Steel
- •Bore: 2-1/8 in. hole retrofits all cylindrical locksets
- •Fits 161 prep doors
- •Individual spring on each side prevents lever sag
- •ADA compliant
- •UL Listed R14879
- •1 year mechanical and finish warranty
- •Easy installation with hardware included
