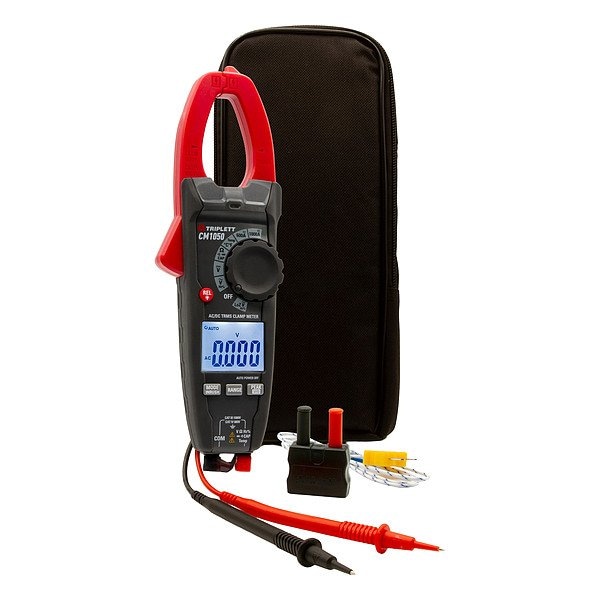

DigitalClampMeter, TRMS, 1000A, 1000VAC

Mfr # CM1050-NIST
Zoro # G022438000

303.99

Free Shipping & Returns

Key Features

Maximum AC Current Measurement

1,000 A

Multiple On-Screen Displays

Battery Voltage

1.5 V

Minimum DC Voltage Measurement

600 mV

CAT Safety Rating

CAT IV 600V

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CM1050-NIST
Zoro #: G022438000
UPC #: 614395003371
Country of Origin: China

Dimensions

Battery Size: AAA
Manufacturers Warranty Length: 1 yr
Overall Height: 9.9 in
True RMS Bandwidth: 400 Hz
Overall Width: 3.2 in

Details

Maximum AC Current Measurement: 1,000 A
Multiple On-Screen Displays: No
Battery Voltage: 1.5 V
Minimum DC Voltage Measurement: 600 mV
CAT Safety Rating: CAT IV 600V
Display Type: Backlit LCD
Diode Test: Yes
Removable Screen: No
Audible Continuity: Yes
Batteries Included: Yes
Thermometer Type: Type K Thermocouple
Maximum DC Voltage Measurement: 1,000 V
Maximum AC Voltage Measurement: 1,000 V
Maximum DC Current Measurement: 1,000 A
Maximum Frequency Measurement: 100 kHz
Peak Hold: No
Thermal Imaging: No
Calibration Certificate Included: NIST Traceable
Special Features: Lo Z (Impedance) Mode, Low Pass Filter
Includes: (3) Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Capacitance Measurement Accuracy: +/-5%
Minimum Frequency Measurement: 10 Hz
Data Hold: Yes
Basic DC Current Accuracy: +/-2.8%
Includes Auto Sensing: No Auto Sensing Included
Instrument Counts: 6,000
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Low Pass Filter, Resistance, Temperature, Variable Frequency Drive
AC Response Calculation: TRMS
Item: Digital Clamp Meter
IP Rating: Not Rated
Basic AC Current Accuracy: +/-2.8%
Jaw Opening: 1.4 in
Temperature Types Measured: Temperature K
Maximum Resistance Measurement: 60 megaohm
Standards: cETLus
Basic AC Voltage Accuracy: +/-1.5%
Battery Access: Yes
Memory: Min/Max
Inrush Current Measurable: Yes
Current Leakage Testing: No
Minimum Capacitance Measurement: 60 nF
Minimum Resistance Measurement: 600 ohm
Time of Day Clock: No
Voltage Units: mV, V
Software Included: No
Maximum Capacitance Measurement: 100 mF
Minimum Operating Temperature: -4 Degrees F
Auto Ranging: Yes
Minimum AC Current Measurement: 600 A
Basic DC Voltage Accuracy: +/-1.5%
Frequency Measurement Accuracy: +/-1.2%
Minimum Storage Temperature: -4 Degrees F
Minimum DC Current Measurement: 600 A
Resistance Measurement Accuracy: +/-3.5%
Auto Power Off: Yes
Maximum Storage Temperature: 140 Degrees F
Bar Graph Included: No
Current Units: A
Jaw Style: Clamp
Minimum AC Voltage Measurement: 6 V
Non-Contact Voltage Detector: Yes

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Low Pass Filter, Resistance, Temperature, Variable Frequency Drive
