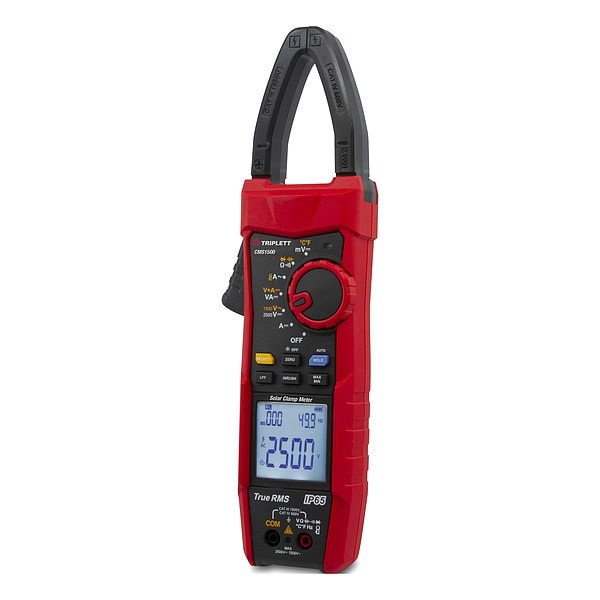

DigitalClampMeter, TRMS, 1000A, 1000VAC

  • Mfr # CMS1500

  • Zoro # G216665335

product price:  $499.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT IV 600V
Jaw Opening
1.4 in
Calibration Frequency
50/60Hz
AC Current Measurement Resolution
0.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CMS1500
Zoro #
G216665335
UPC #
614395005665
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Maximum Conductor Size
1.4 in (35mm)
Overall Height
11.6 in
Battery Size
AA
True RMS Bandwidth
1 kHz
Overall Width
2.9 in

Details

Item
Solar Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT IV 600V
Jaw Opening
1.4 in
Calibration Frequency
50/60Hz
AC Current Measurement Resolution
0.1 A
AC Voltage Measurement Resolution
0.1 V
Inrush Current Measurable
Yes
Diode Test
Yes
Frequency Counter
1 kHz
Dustproof
Yes
Maximum DC Current Measurement
1,000 A
Elapse Time Clock
No
Special Features
Low Pass Filter
Maximum AC Voltage Measurement
1,000 V
Auto Ranging
Yes
Calibration Certificate Included
No
Basic DC Voltage Accuracy
+/-1.00%
Multiple On-Screen Displays
No
Minimum DC Current Measurement
0 A
Thermometer Type
Type K Thermocouple
Minimum DC Voltage Measurement
0 V
DC Current Measurement Resolution
0.1 A
Battery Voltage
1.5V
Auto Power Off
Yes
Intrinsically Safe
No
Frequency Measurement Accuracy
+/-2.00%
Battery Chemistry
Alkaline
Resistance Measurement Resolution
0.1 ohm
Jaw Style
Clamp On
Thermal Imaging
No
Minimum AC Current Measurement
0 A
Minimum Storage Temperature
-4 Degrees F
Frequency Measurement Resolution
0.1 Hz
Batteries Included
Yes
Peak Hold
No
Basic DC Current Accuracy
+/-2.00%
Minimum AC Voltage Measurement
0 V
Time of Day Clock
No
Non-Contact Voltage Detector
Yes
Includes
(2) AA Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Maximum Frequency Measurement
999.9 kHz
Maximum AC Current Measurement
1,000 A
Capacitance Measurement Resolution
0.1 uF
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Power (kVA), DC Voltage, Diode, Frequency, Resistance, Temperature
Standards
CE
Display Type
Backlit LCD
Basic AC Current Accuracy
+/-2.00%
Memory
Max/Min
Capacitance Measurement Accuracy
+/-1.00%
Current Leakage Testing
No
DC Voltage Measurement Resolution
0.1 mV
Software Included
No
Waterproof
Yes
Data Hold
Yes
Data Logging
No
Resistance Measurement Accuracy
+/-1.00%
Removable Screen
No
Minimum Operating Temperature
32 Degrees F
Basic AC Voltage Accuracy
+/-2.00%
Maximum DC Voltage Measurement
1,000 V
Maximum Capacitance Measurement
1,000 uF
Maximum Storage Temperature
140 Degrees F
Maximum Resistance Measurement
1,000 ohm
Battery Access
Yes
Bar Graph Included
No
Instrument Counts
9999
Bluetooth Compatible
No
IP Rating
IP65
Audible Continuity
Yes
AC Response Calculation
TRMS
Min-Max-Avg Button Included
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP65, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, Active Power, DC Voltage, Diode, Frequency, Resistance, Temperature, Intrinsically Safe No, Dustproof Yes
