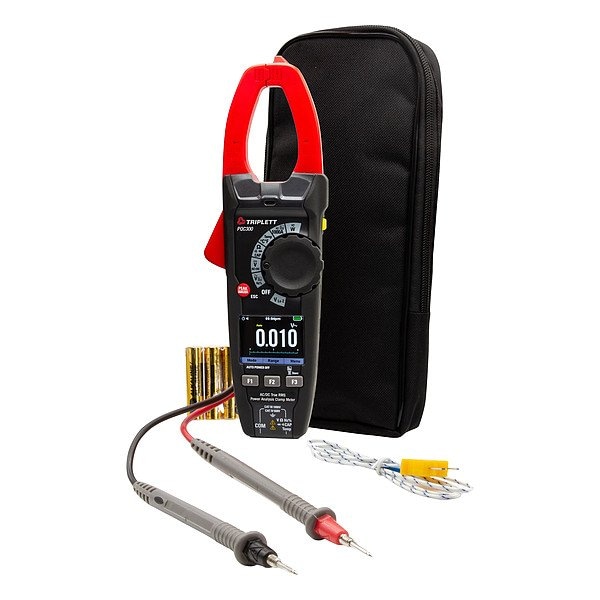

DigitalClampMeter, TRMS, 1000A, 1000VAC

  • Mfr # PQC300

  • Zoro # G922440295

product price:
$
395.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Includes
(3) Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Peak Hold
No
Basic DC Current Accuracy
+/-2.8%
Time of Day Clock
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PQC300
Zoro #
G922440295
UPC #
614395004774
Country of Origin
China
Display Type
LCD
Includes
(3) Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Peak Hold
No
Basic DC Current Accuracy
+/-2.8%
Time of Day Clock
No
Bar Graph Included
No
Current Leakage Testing
No
Maximum Capacitance Measurement
6 mF
Maximum AC Current Measurement
1,000 A
Temperature Types Measured
Temperature K
Minimum DC Voltage Measurement
600 mV
Thermometer Type
Type K Thermocouple
Includes Auto Sensing
No Auto Sensing Included
Logging Memory
12,000
Maximum Storage Temperature
140 Degrees F
Jaw Opening
1.26 in
Thermal Imaging
No
Frequency Measurement Resolution
0.01 Hz
Maximum AC Voltage Measurement
1,000 V
Auto Ranging
Yes
Diode Test
Yes
Battery Access
Yes
Calibration Certificate Included
No Certification Included
Jaw Style
Clamp
Battery Voltage
1.5 V
DC Voltage Measurement Resolution
0.1 mV
AC Voltage Measurement Resolution
0.001 V
Basic AC Current Accuracy
+/-2.8%
Maximum DC Voltage Measurement
1,000 V
Minimum DC Current Measurement
600 A
Removable Screen
No
Non-Contact Voltage Detector
Yes
Resistance Measurement Resolution
0.1 ohm
AC Current Measurement Resolution
0.1 A
Auto Power Off
Yes
Minimum Capacitance Measurement
60 nF
Minimum AC Voltage Measurement
6 V
Capacitance Measurement Resolution
0.01 nF
Minimum Storage Temperature
-4 Degrees F
Maximum Frequency Measurement
10 kHz
Maximum Resistance Measurement
60 megaohm
Special Features
Detailed Display, Inrush Current Function, Low Impedance Mode
Inrush Current Measurable
Yes
Minimum AC Current Measurement
600 A
Maximum DC Current Measurement
1,000 A
Basic AC Voltage Accuracy
+/-1.5%
Current Units
A
Basic DC Voltage Accuracy
+/-1.5%
Memory
Min/Max
Data Hold
Yes
Minimum Resistance Measurement
600 ohm
Capacitance Measurement Accuracy
+/-3%
Batteries Included
Yes
Minimum Operating Temperature
-40 Degrees F
Instrument Counts
6,000
Voltage Units
mV, V
AC Response Calculation
TRMS
Software Included
No
Resistance Measurement Accuracy
+/-3.5%
Standards
CE, RoHS
Parameters Measured
AC Current, AC Voltage, Active Power, Apparent Power, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Harmonics, Power Factor, Reactive Power, Resistance, Temperature
Multiple On-Screen Displays
No
CAT Safety Rating
CAT IV 600V
DC Current Measurement Resolution
0.1 A
Frequency Measurement Accuracy
+/-1.2%
Audible Continuity
Yes
Item
Digital Clamp Meter
IP Rating
Not Rated

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated
