  9. RMS Multimeter, 1,000 V Max DC, TRMS, 6,000/60,000 Instrument Counts, Backlit LCD

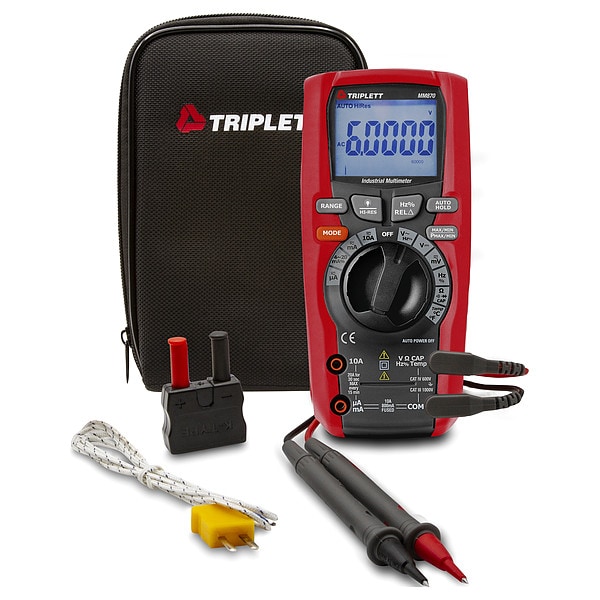

Triplett RMS Multimeter, 1,000 V Max DC, TRMS, 6,000/60,000 Instrument Counts, Backlit LCD MM870 - main

RMS Multimeter, 1,000 V Max DC, TRMS, 6,000/60,000 Instrument Counts, Backlit LCD

  • Mfr # MM870

  • Zoro # G109769195

product price: $469.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/60,000
Includes
(4) AAA Batteries, Test Leads, Type K Temperature Probe
Standards
CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MM870
Zoro #
G109769195
UPC #
614395005016
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Depth
1.9 in
Battery Size
AAA
Overall Width
3 in
Overall Height
6.7 in

Details

Item
RMS Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/60,000
Includes
(4) AAA Batteries, Test Leads, Type K Temperature Probe
Standards
CE
Auto Power Off
Yes
Audible Continuity
Yes
Auto Ranging
Yes
Instrument Safety Rating
CAT IV 600V
Peak Hold
Yes
Duty Cycle
0.1 to 99.9%
Calibration Certificate Included
No
Intrinsically Safe
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage
Battery Access
Yes
Bar Graph Included
Yes
Maximum AC Current Measurement
10 A
Basic DC Current Accuracy
+/-0.05%
Weight
13.6 oz
Maximum AC Voltage Measurement
1,000 V
Basic AC Current Accuracy
+/-0.05%
AC Response Calculation
TRMS
Maximum Resistance Measurement
60 megaohm
Maximum Frequency Measurement
20 MHz
Basic AC Voltage Accuracy
+/-0.05%
IP Rating
IP67
Minimum Operating Temperature
-58 Degrees F
Waterproof
Yes
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
10 A
Basic DC Voltage Accuracy
+/-0.05%
Min-Max-Avg Button Included
Yes
Maximum Capacitance Measurement
6 mF
Batteries Included
Yes
Current Leakage Testing
No
Thermal Imaging
No
Dustproof
Yes
Resistance Measurement Accuracy
+/-(0.2% + 3)
Temperature Measurement Accuracy
+/-(1.2% + 5 Degrees F/3 Degrees C)
Frequency Measurement Accuracy
+/-(0.5% + 2)
Removable Screen
No
Capacitance Measurement Accuracy
+/-(2.5% + 10)
Bluetooth Compatible
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.05 Percent, Basic DC Voltage Accuracy +/-0.05 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/60,000 (Depending on Mode)
