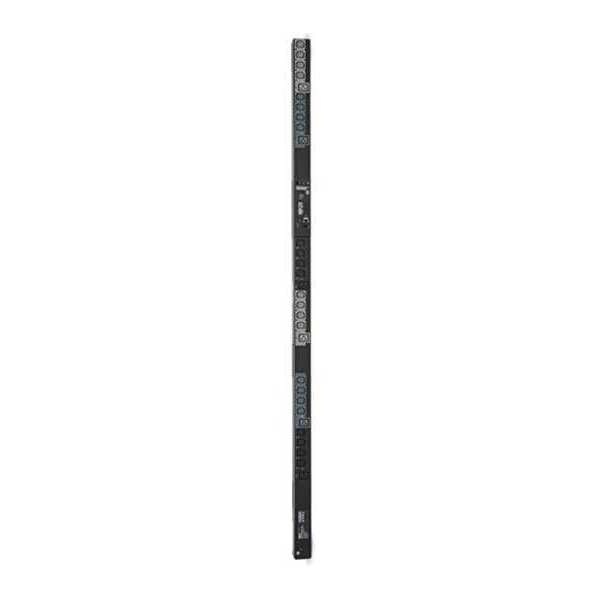

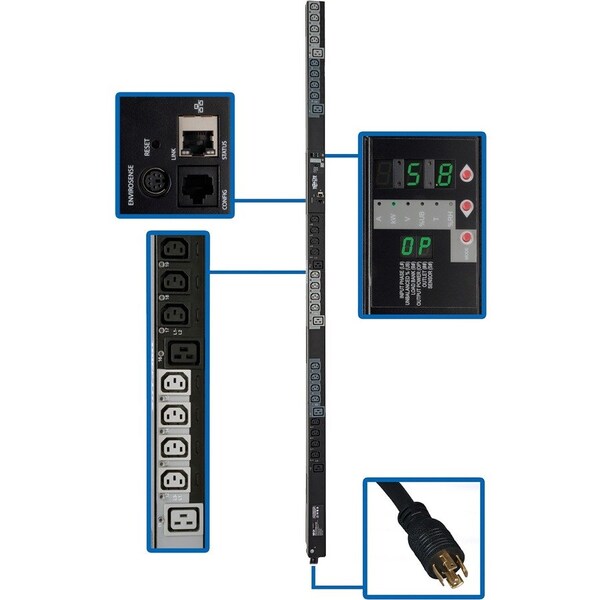

Tripp Lite PDU, Switched, (24) C13, (6) C19, L21-20P, 6 ft. PDU3VSR6L2120 - main

PDU, Switched, (24) C13, (6) C19, L21-20P, 6 ft.

  • Mfr # PDU3VSR6L2120

  • Zoro # G5178741

product price: $1,135.99
/ea
Free Shipping & Returns

Key Features

Type
Switched
Receptacle Configuration
(24) C13, (6) C19
Plug Configuration
L21-20P
Cord Length
6 ft.
Standards
UL/CAN 60950-1; Class A; NOM; TAA Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3VSR6L2120
Zoro #
G5178741
UPC #
037332180513
Country of Origin
China

Dimensions

Cord Length
6 ft.
Width
2.2"
Height
70"
Depth
2.9"

Details

Item
PDU
Type
Switched
Receptacle Configuration
(24) C13, (6) C19
Plug Configuration
L21-20P
Standards
UL/CAN 60950-1; Class A; NOM; TAA Compliant
NEMA Plug Configuration
NEMA L21-20P
Housing Material
Steel
Voltage
200/208/240V
Circuit Breaker
Yes
Mounting Style
Vertical Rackmount/0U
Green Environmental Attribute
Yes
Includes
PDU3VSR6L2120 PDUPlug Lock Cord Retention SleevesSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual
Max. Amps
16A
Number of Outlets
30
NEMA Receptacle Configuration
(24) C13; (6) C19
Frequency
50/60 Hz
Green Certification or Other Recognition
RoHS
Mouting Style
Rack-mountable
Power Rating (Watt)
6700 W
Certifications & Standards
UL/CAN 60950-1, Class A, NOM, TAA Compliant
Receptacle Detail
24 x IEC 60320 C13, 6 x IEC 60320 C19
Mounting Orientation
Vertical
Product Type
PDU
Input Voltage Range
200 V AC - 240 V AC
Input Current
16 A
Input Voltage
230 V AC
Package Contents
PDU3VSR6L2120 PDU, Plug Lock Cord Retention Sleeves, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Mount Type
Rack-mountable
Output Voltage
240 V AC, 230 V AC, 208 V AC, 200 V AC, 220 V AC
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Operating Temperature Range
32 to 122F (0 to 50C)
Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (9.24A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
Storage Temperature Range
5 to 140F (-15 to 60C)
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Frequency Compatibility
50 / 60 Hz
Input Phase
3-Phase
Output Capacity Details
6.7kW (240V), 6.4kW (230V), 6.1kW (220V), 5.8kW (208V), 5.5kW (200V) total capacity / 9.2A max per output phase (L1-L2, L2-L3, L3-L1)
Output Receptacles
(24) C13; (6) C19
Material of Construction
Steel
PDU Type
Switched
Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Maximum Input Amps
16
Current Measurement Accuracy (Amps)
+/-1%
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Power Measurement Accuracy (Watts)
+/-1%
Output Nominal Voltage
200; 208; 240
Package Includes
Switched vertical rackmount PDU with pre-installed mounting buttons;Plug lock cord retention sleeves;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
PDU Form Factor
Vertical (0U)
Operating Elevation (ft.)
0-10,000
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface

Description

PDU,3-Ph,Switched,6.7kW,24 C13,6 C19,0U
